Product Summary

The HCPL-316J-500E is a 2.0 Amp Gate Drive Optocoupler with Integrated (VCE) Desaturation Detection and Fault Status Feedback.

Parametrics

HCPL-316J-500E absolute maximum ratings: (1)Storage Temperature: -55 to 125 °C (2)Operating Temperature: -40 to 100°C; (3)Output IC Junction Temperature: 125°C; (4)Peak Output Current: 2.5 A; (5)Fault Output Current: 8.0 mA; (6)Positive Input Supply Voltage: -0.5 to 5.5 Volts; (7)Input Pin Voltages : -0.5 to VCC1 Volts; (8)Total Output Supply Voltage: -0.5 to 35 Volts; (9)Negative Output Supply Voltage: -0.5 to 15 Volts; (10)Positive Output Supply Voltage: -0.5 to 35 - (VE - VEE) Volts; (11)Gate Drive Output Voltage: -0.5 to VCC2 Volts; (12)Collector Voltage: VEE + 5 V to VCC2 Volts; (13)DESAT Voltage: VE to VE + 10 Volts.

Features

HCPL-316J-500E features: (1)Drive IGBTs up to IC = 150 A, VCE = 1200 V; (2)Optically Isolated, FAULT Status Feedback; (3)SO-16 Package; (4)CMOS/TTL Compatible; (5)500 ns Max. Switching Speeds; (6)Integrated Fail-Safe IGBT Protection: Desat (VCE) Detection, Under Voltage Lock-Out Protection (UVLO) with Hysterisis; (7)User Configurable: Inverting, Non-inverting, Auto-Reset, Auto-Shutdown.

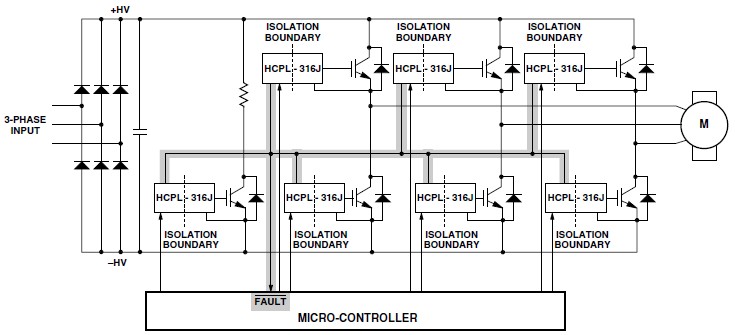

Diagrams

HCPL-316J-500E pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HCPL-316J-500E
HCPL-316J-500E
Avago Technologies
Logic Output Optocouplers 2.0A IGBT Gate Drive
Data Sheet
0-1: $4.42
1-25: $3.62
25-100: $3.22
100-250: $2.89
