HCF40110BEY

HCF40110BEY, decade up-down counter/decoder/latch/driver, DIP, -0.5 to +20V, 200mW, STMicroelectronics

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: HCF40110BEY

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:HCF40110BEY
US $3.00 - 5.00
Quantity:

piece

Product Summary

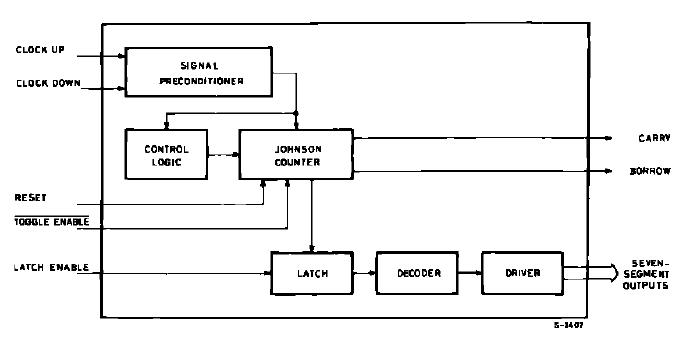

The HCF40110BEY is a monolithic integrated circuit, available in 16-lead dual in-line plastic or ceramic package. The HCF40110BEY is a dual-clocked up/down counter with a special preconditioning circuit that allows the counter to be clocked, via positive going inputs, up or down regardless of that state or timing (within 100 ns typ.) of the other clock line.

Parametrics

HCF40110BEY absolute maximum ratings: (1)VDD, Supply Voltage: HCC Types: -0.5 to +20V; HCF Types: -0.5 to +18V; (2)Vi, Input Voltage: -0.5 to VDD + 0.5 V; (3)II, DC Input Current (any one input): ±10 mA; (4)Ptot, Total Power Dissipation (per package): 200mW; Dissipation per Output Transistor for Top = Full Package Temperature Range: 100mW; (5)Top, Operating Temperature: HCC Types: -55 to +125℃; (6)HCF, Types: -40 to +85℃; (7)Tstg, Storage Temperature: -65 to +150℃.

Features

HCF40110BEY features: (1)Separate clock-up and clock-down lines; (2)Capable of driving common cathode leds and other displays directly; (3)Allows cascading without any external circuitry; (4)Maximum input current OF 1 mA AT18 V (full package-temperature range); (5)Quiescent current AT 20V for HCC device; (6)5 V, 10 V AND 15 V parametric ratings; (7)Input current OF 100 nA AT 18 V and 25℃ for hcc device; (8)100% tested for quiescent currenT; (9)Meets all requirements of jedec tentative standard no. 13 a, ”standard specifications for description of ”b” seriescmos devices”.
