Product Summary

The FSBB30CH60F is an advanced motion-smart power module (Motion-SPM) . The FSBB30CH60F has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and washing machine. Applications of the FSBB30CH60F include: AC 100V ~ 253V three-phase inverter drive for small power ac motor drives and Home appliances applications like air conditioner and washing machine.

Parametrics

FSBB30CH60F absolute maximum ratings: (1) Supply Voltage VPN: 450V (Applied between P- Nu , Nv , Nw) ; (2) Supply Voltage (Surge) VPN (surge) : 500V; (3) Collector-emitter Voltage VCES: 600V; (4) Each IGBT Collector Current ±Ic: 30A (Tc=25°C) ; (5) Each IGBT Collector Current (Peak) ±Icp: 60A (Tc=25°C, Under 1ms Pulse Width) ; (6) Collector Dissipation Pc: 103W (Tc=25°C per One Chip) ; (7) Operating Junction Temperature Tj: -20 to 125°C.

Features

FSBB30CH60F features: (1) UL Certified No.E209204(SPM27-EA package) ; (2) Very low thermal resistance due to using DBC; (3) Easy PCB layout due to built in bootstrap diode; (4) 600V-30A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (5) Divided negative dc-link terminals for inverter current sensing applications; (6) Single-grounded power supply due to built-in HVIC; (7) Isolation rating of 2500Vrms/min.

Diagrams

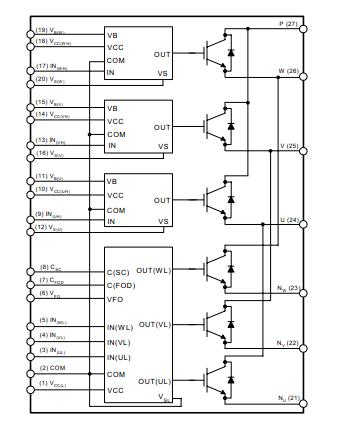

FSBB30CH60F internal equivalent circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FSBB30CH60F
FSBB30CH60F
Fairchild Semiconductor
Motor / Motion / Ignition Controllers & Drivers HIGH_VOLTAGE
Data Sheet
0-36: $18.10
36-100: $16.82
100-250: $15.43
