Product Summary
The FP6290TR-LF is a current mode boost DC-DC converter. Its PWM circuitry with built-in 0.2Ω power MOSFET makes this converter highly power efficiently. Selectable high switching frequency allows faster loop response and easy filtering with a low noise output. The non-inverting input its error amplifier is connected to an internal 1.24V precision reference voltage. The applications of the FP6290TR-LF are LCD Display, Digital Camera, Handheld Device, Portable Product.
Parametrics
FP6290TR-LF absolute maximum ratings: (1)Supply Voltage VCC: 6 V; (2)RMS LX Current: 1.2 A; (3)LX to GND: -0.3 to 14 V; (4)SS,COMP to GND: -0.3 to VCC+0.3 V; (5)EN,FREQ,FB to GND: -0.3 to VCCV; (6)Junction Temperature TJ: +150 ℃; (7)Storage Temperature TS: -65 to +150 ℃.
Features
FP6290TR-LF features: (1)Adjustable Output from VCCto 12V; (2)Internal Fixed PWM Frequency: 640KHz / 1.2MHz; (3)Frequency Selection Pin; (4)Precision Feedback Reference Voltage: 1.24V; (5)Internal 0.2Ω, 1.6A, 14V Power MOSFET; (6)External Programmable Soft-Start Function (SS); (7)Shutdown Current : 0.1uA; (8)Over Current Protection; (9)Package: MSOP-8L.

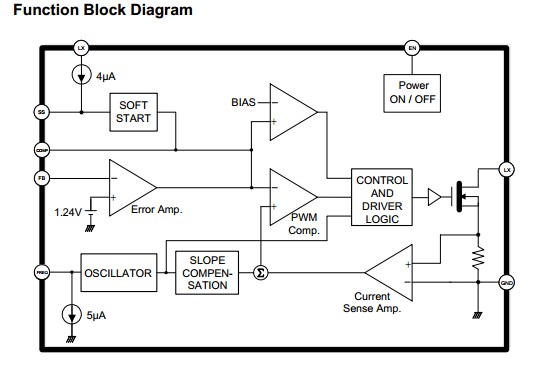

Diagrams
