Product Summary

The FP6102DR-LF is a buck switching regulator for wide operating voltage application fields. The FP6102DR-LF includes a high current P-MOSFET, high precision reference (0.5V) for comparing output voltage with a feedback amplifier, an internal dead-time controller and oscillator for controlling the maximum duty cycle and PWM frequency. It also has power-on programmable soft start time, short circuit PMOS turn-off and auto re-start protection functions.

Parametrics

FP6102DR-LF absolute maximum ratings: (1)Power Supply Voltage VCC: 21 V; (2)Output Source Current: 3 A; (3)Error Amplifier Inverting Input: -0.3 to 1.2 V; (4)Allowable Power Dissipation PD: 650 mW; (5)Junction to Ambient Thermal Resistance θJA: +175°C/ W; (6)Junction to Case Thermal Resistance θJC: +45°C/ W; (7)Operating Temperature: -25 to +85°C; (8)HBM (Human Body Mode): 2 KV.

Features

FP6102DR-LF features: (1)precision feedback reference voltage: 0.5v (2%); (2)wide supply voltage operating range: 3.6 to 20v; (3)low current consumption: 3ma; (4)unternal fixed oscillator frequency: 340khz (typ.); (5)internal soft-start function (ss); (6)short circuit shutdown and auto re-start function (arscp); (7)built-in p-mosfet for 3a loading capability; (8)over current protection; (9)package: sop-8l.

Diagrams

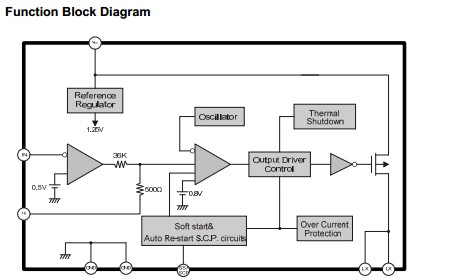

FP6102DR-LF block diagram
