Product Summary

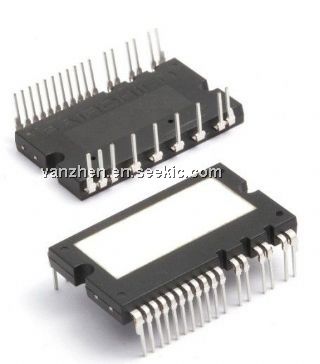

The FNA41560-B2 is an advanced motion-smart module (Motion-SPM) that Fairchild has newly developed and designed to provide very compact and high performance ac motor.The FNA41560-B2 combines optimized circuit protection and drive matched to low-loss IGBTs. Applications of the FNA41560-B2 include: AC 100V -253V three-phase inverter drive for small power ac motor drives, home appliances applications drives like air conditioner and refrigerator.

Parametrics

FNA41560-B2 absolute maximum ratings: (1) Supply voltage VPN: 450V (Applied between P-Nu, Nv, Nw) ; (2) Supply Voltage (surge) : 500V (Applied between P-Nu, Nv, Nw) ; (3) Collector-emitter voltage: 600V; (4) Each IGBT collector current: 15A (Tc=25°C, Tj＜150°C) ; (5) Each IGBT Collector Current (peak) : 30A; (6) collector dissipation: 41W; (7) operating temperature: -40 to 150°C.

Features

FNA41560-B2 features: (1) 600V-15A 3-phase /IGBT inverter bridge including controls ICs for gate driving and protection; (2) east PCB layout due to built-in bootstrao diode and Vs output; (3) divided negative dc-link terminals for inverter current sensing applications; (4) single-grounded power supply due to built-in HVIC; (5) built-in thermistor for over-temperature monitoring; (6) isolation rating of 2000V rms/min.

Diagrams

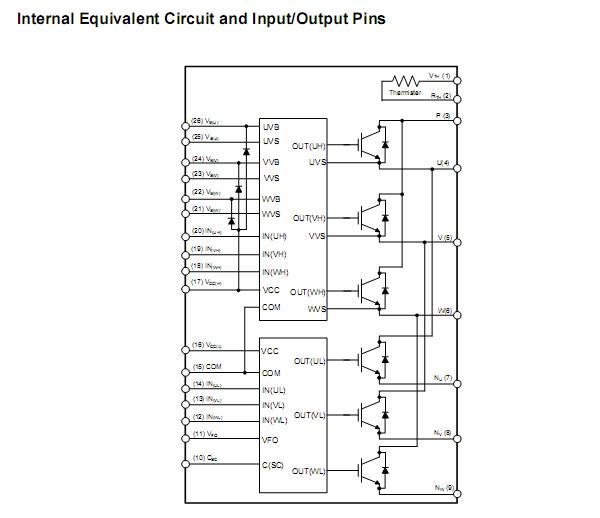

FNA41560-B2 Circuit
