FMS6141S5X

FMS6141S5X, Low-Cost Video Filter, 6.0 V, 50 mA, 8MHz, SC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: FMS6141S5X

Brand:: Fairchild Semiconductor - Fairchild | Pack: SC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-31

From Other Seller

Part Number:FMS6141S5X
US $0.30 - 0.50
Quantity:

piece

Product Summary

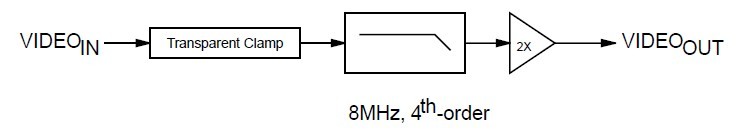

The FMS6141S5X is a Low-Cost Video Filter. The FMS6141S5X is intended to replace passive LC filters and drivers with a low-cost integrated device. The 4th-order filter provides improved image quality compared to typical 2nd or 3rd-order passive solutions. The FMS6141S5X may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if an AC-coupled input is required (see Application Information for details). Applications are (1)Cable Set-Top Boxes; (2)Satellite Set-Top Boxes; (3)DVD Players; (4)HDTVs; (5)Personal Video Recorders (PVR); (6)Video On Demand (VOD).

Parametrics

FMS6141S5X absolute maximum ratings: (1)DC Supply Voltage: -0.3 to 6.0 V; (2)Analog and Digital I/O: -0.3 to VCC +0.3 V; (3)Output Current, Do Not Exceed: 50 mA; (4)Operating Temperature Range: -40 to 85 °C; (5)VCC Range: 4.75 to 5.25 V.

Features

FMS6141S5X features: (1)Single 4th-Order 8MHz (SD)Filter; (2)Drives Single, AC- or DC-coupled, Video Loads (2Vpp, 150Ω); (3)Drives Dual, AC- or DC-coupled, Video Loads (2Vpp, 75 Ω); (4)Transparent Input Clamping; (5)AC- or DC-Coupled Input; (6)AC- or DC-Coupled Output; (7)DC-Coupled Output Eliminates AC-Coupling Capacitors; (8)Single Supply; (9)Robust 10kV ESD Protection; (10)Lead-Free Packages: SOIC-8 or SC70-5.
