Product Summary
The FM24C16B is a 16-kilobit nonvolatile memory employing an advanced ferroelectric process. The FM24C16B performs write operations at bus speed. The FM24C16B provides substantial benefits to users of serial EEPROM, and these benefits are available as a hardware drop-in replacement.
Parametrics
FM24C16B absolute maximum ratings: (1) Power Supply Voltage with respect to Vss, VDD: -1.0V to +7.0V; (2) Voltage on any signal pin with respect to VSS VIN: -1.0V to +7.0V and VIN < VDD +1.0V; (3) Storage Temperature TSTG: -55℃ to +125℃； (4) Lead Temperature (Soldering, 10 seconds) : 260℃; (5) Electrostatic Discharge Voltage, Human Body Model (AEC-Q100-002 Rev. E) : 4kV, Charged Device Model (AEC-Q100-011 Rev. B) : 1.25kV, Machine Model (AEC-Q100-003 Rev. E) : 100V.
Features
FM24C16B features: (1) 16K bit Ferroelectric Nonvolatile RAM; (2) Fast Two-wire Serial Interface: Up to 1MHz maximum bus frequency, Direct hardware replacement for EEPROM and Supports legacy timing for 100 kHz & 400 kHz; (3) Low Power Operation; (4) ndustry Standard Configuration.

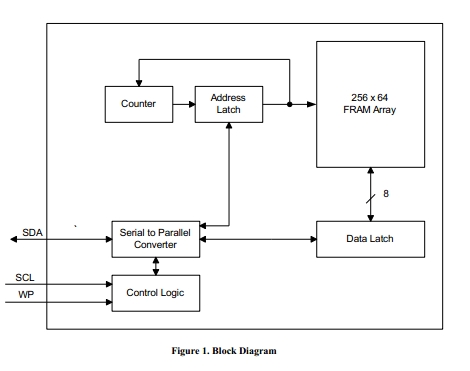

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM24C16B-G |
Ramtron |
F-RAM 16Kb Serial I2C 5V FRAM |
Data Sheet |
|
|
||||||||||||
|
FM24C16B-GTR |
Ramtron |
F-RAM 16Kb Serial I2C 5V FRAM |
Data Sheet |
|
|
||||||||||||
