Product Summary

The FM24C04B is a 4-kilobit nonvolatile memory employing an advanced ferroelectric process. The FM24C04B is nonvolatile and performs reads and writes like a RAM. The FM24C04B provides reliable data retention for 38 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories.

Parametrics

FM24C04B absolute maximum ratings: (1) Power Supply Voltage with respect to VSS: -1.0V to +7.0V; (2) Voltage on any pin with respect to VSS: -1.0V to +7.0V, VIN < VDD+1.0V; (3) Storage Temperature: -55°C to + 125°C; (4) Lead temperature (Soldering, 10 seconds): 260°C; (5) Electrostatic Discharge Voltage; (6) Package Moisture Sensitivity Level: MSL-1.

Features

FM24C04B features: (1) 4K bit Ferroelectric Nonvolatile RAM; (2) Fast Two-wire Serial Interface; (3) Low Power Operation;
(4) Industry Standard Configuration.

Diagrams

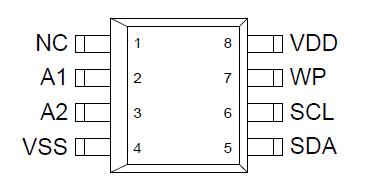

FM24C04B pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FM24C04B-G
FM24C04B-G
Ramtron
F-RAM 4Kb Serial I2C 5V FRAM
Data Sheet
0-1: $0.89
1-10: $0.80
10-50: $0.72
50-100: $0.65
FM24C04B-GTR
FM24C04B-GTR
Ramtron
F-RAM 4Kb Serial I2C 5V FRAM
Data Sheet
0-2500: $0.43
2500-5000: $0.41
