Product Summary

The EPM7064BTC100-7 is a high-density, high-performance device based on Alteras second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based EPM7064BTC100-7 operates with a 2.5-V supply voltage and provide 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 3.5 ns, and counter speeds up to 303.0 MHz.

Parametrics

EPM7064BTC100-7 absolute maximum ratings: (1)VCCINT Supply voltage: –0.5 to 3.6 V; (2)VCCIO Supply voltage: –0.5 to 3.6 V; (3)VI DC input voltage: –2.0 to 4.6 V; (4)IOUT DC output current, per pin: –33 to 50 mA; (5)TSTG Storage temperature No bias: –65 to 150 ° C; (6)TA Ambient temperature Under bias: –65 to 135 ° C; (7)TJ Junction temperature Under bias: –65 to 135 ° C.

Features

EPM7064BTC100-7 features: (1)Pin-compatible with the popular 5.0-V MAX 7000S and 3.3-V MAX 7000A device families; (2)High-density PLDs ranging from 600 to 10,000 usable gates; (3)3.5-ns pin-to-pin logic delays with counter frequencies in excess of 303.0 MHz; (4)Programs through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG)interface with advanced pin-locking capability; (5)Enhanced ISP algorithm for faster programming; (6)ISP_Done bit to ensure complete programming; (7)Pull-up resistor on I/O pins during in-system programming; (8)ISP circuitry compliant with IEEE Std. 1532.

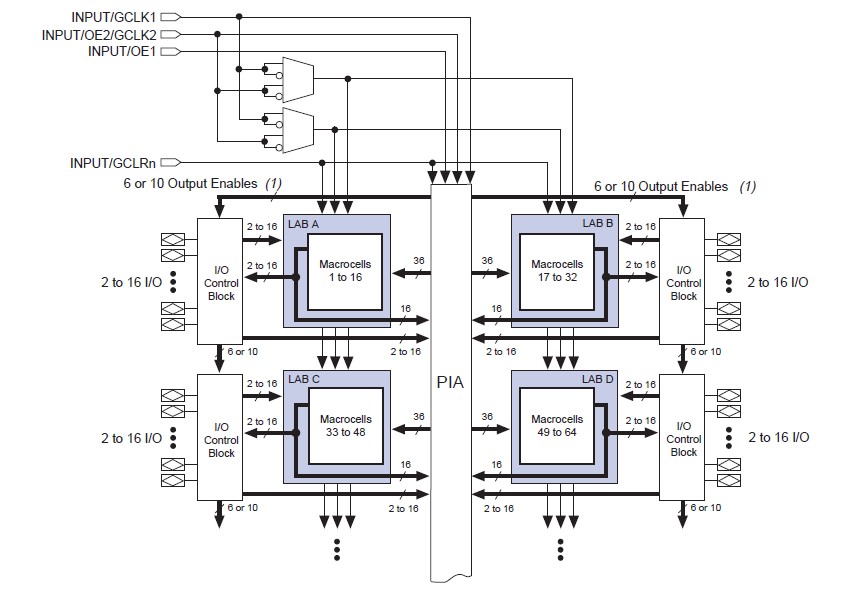

Diagrams

EPM7064BTC100-7 pin connection
