Product Summary
The EP4SGX180KF40C3N is a Stratix IV Device. When the EP4SGX180KF40C3N is implemented in a system, the EP4SGX180KF40C3N is rated according to a set of defined parameters. To maintain the highest possible performance and reliability of Stratix IV devices, system designers must consider the following operating requirements. The EP4SGX180KF40C3N is offered in both commercial and industrial grades. The EP4SGX180KF40C3N is offered in -2 (fastest), -2x, -3, and -4 speed grades.
Parametrics
EP4SGX180KF40C3N absolute maximum ratings: (1)VCC Core voltage and periphery circuitry power supply: -0.5 to 1.35 V; (2)VCCPT Power supply for programmable power technology: -0.5 to 2.25 V; (3)VCCPGM Configuration pins power supply: -0.5 to 3.75 V; (4)VCCAUX Auxiliary supply for the programmable power technology: -0.5 to 3.75 V; (5)VCCBAT Battery back-up power supply for design security volatile key register: -0.5 to 3.75 V; (6)VCCPD I/O pre-driver power supply: -0.5 to 3.75 V; (7)VCCIO I/O power supply: -0.5 to 3.9 V; (8)VCC_CLKIN Differential clock input power supply: -0.5 to 3.75 V; (9)VCCD_PLL PLL digital power supply: -0.5 to 1.35 V; (10)VCCA_PLL PLL analog power supply: -0.5 to 3.75 V; (11)VI DC input voltage: -0.5 to 4.0 V; (12)TJ Operating junction temperature: -40 to 100 °C; (13)TSTG Storage temperature: -65 to 150°C.
Features
EP4SGX180KF40C3N features: (1)VCC Core voltage and periphery circuitry power supply: 0.87 to 0.93 V; (2)VCCPT Power supply for programmable power technology: 1.45 to 1.55 V; (3)VCCAUX Auxiliary supply for the programmable power technology: 2.375 to 2.625 V.

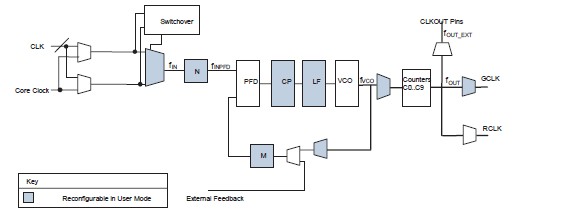

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP4SGX180KF40C3N |
|

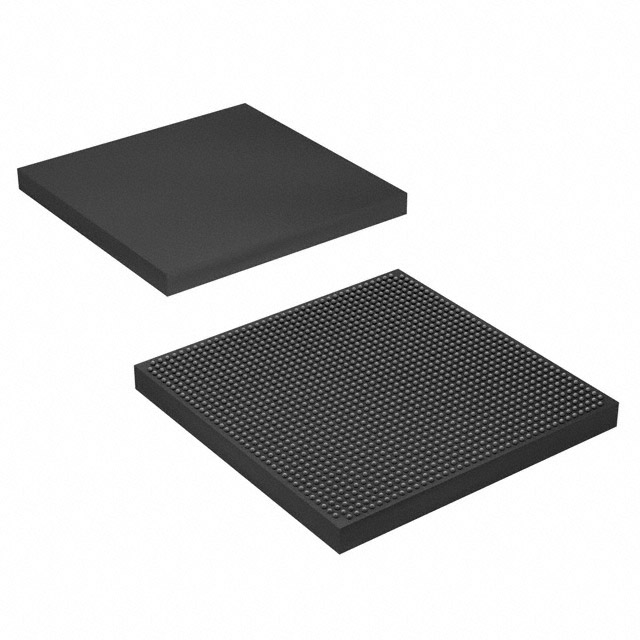

IC STRATIX IV FPGA 180K 1517FBGA |
Data Sheet |
|
|
||||||
