Product Summary
The EP3SE80F780I3N is a Stratix III Device. When the EP3SE80F780I3N is implemented in a system, the EP3SE80F780I3N is rated according to a set of defined parameters. To maintain the highest possible performance and reliability of the EP3SE80F780I3N, system designers must consider the operating requirements described in this chapter.
Parametrics
EP3SE80F780I3N absolute maximum ratings: (1)VCCL Selectable core voltage power supply: -0.5 to 1.65 V; (2)VCC I/O registers power supply : -0.5 to 1.65 V; (3)VCCD_PLL Phase-locked loop (PLL)digital power supply: -0.5 to 1.65 V; (4)VCCA_PLL PLL analog power supply: -0.5 to 3.75 V; (5)VCCPT Programmable power technology power supply : -0.5 to 3.75 V; (6)VCCPGM Configuration pins power supply : -0.5 to 3.9 V; (7)VCCPD I/O pre-driver power supply: -0.5 to 3.9 V; (8)VCCIO I/O power supply : -0.5 to 3.9 V; (9)VCC_CLKIN Differential clock input power supply (top and bottom I/O banks only): -0.5 to 3.75V; (10)VCCBAT Battery back-up power supply for design security volatile key register : -0.5 to 3.75 V VI DC Input voltage: -0.5 to 4.0 V; (11)TJ Operating junction temperature: -55 to 125 °C; (12)IOUT DC output current, per pin: -25 to 40 mA; (13)TSTG Storage temperature (No bias): -65 to 150 °C.
Features
EP3SE80F780I3N features: (1)VCC I/O registers power supply: 1.05 to 1.15 V; (2)VCCD_PLL PLL digital power supply: 1.05 to 1.15 V; (3)VCCA_PLL PLL analog power supply: 2.375 to 2.625 V; (4)VCCPT Power supply for the programmable power technology : 2.375 to 2.625 V.

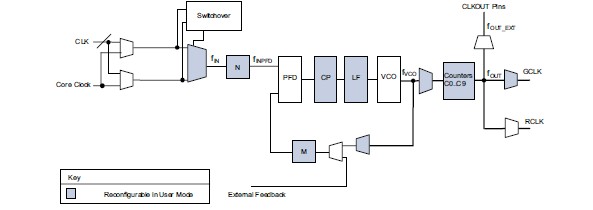

Diagrams
