Product Summary

The EP3C25F256C7N is a FPGA. When Cyclone III EP3C25F256C7N is implemented in a system, it is rated according to a set of defined parameters. To maintain the highest possible performance and reliability of the device, system designers must consider the operating requirements in this document. The EP3C25F256C7N is offered in commercial, industrial, and automotive grades. Commercial device is offered in -6 (fastest), -7, and -8 speed grades. Industrial and automotive devices are offered only in -7 speed grade.

Parametrics

EP3C25F256C7N absolute maximum ratings: (1)VCCINT, Supply voltage for internal logic: –0.5 to 1.8 V; (2)VCCIO, Supply voltage for output buffers: –0.5 to 3.9 V; (3)VCCA, Supply voltage (analog) for phase-locked loop (PLL) regulator: –0.5 to 3.75 V; (4)VCCD_PLL, Supply voltage (digital) for PLL: –0.5 to 1.8 V; (5)VI DC, input voltage: –0.5 to 3.95 V; (6)IOUT, DC output current, per pin: –25 to 40 mA; (7)VESDHBM, Electrostatic discharge voltage using the human body model: ±2000 V; (8)VESDCDM, Electrostatic discharge voltage using the charged device model: ±500 V; (9)TSTG, Storage temperature: –65 150 ℃; (10)TJ, Operating junction temperature: –40 125 ℃.

Features

EP3C25F256C7N features: (1)Supply voltage for internal logic: 1.15 v min, 1.2 v typ,1.25v max; (2)Supply voltage for output buffers, 3.3-V operation: 3.135 v min, 3.3v typ; 3.465 V max; (3)Supply voltage for output buffers, 3.0-V operation: 2.85 v min 3v typ, 3.15 V max; (4)Supply voltage for output buffers, 2.5-V operation: 2.375v min, 2.5v typ; 2.625 V max; (5)Supply voltage for output buffers, 1.8-V operation: 1.71v min, 1.8v typ,1.89 V max; (6)Supply voltage for output buffers, 1.5-V operation: 1.425 v min, 1.5v typ, 1.575 V max.

Diagrams

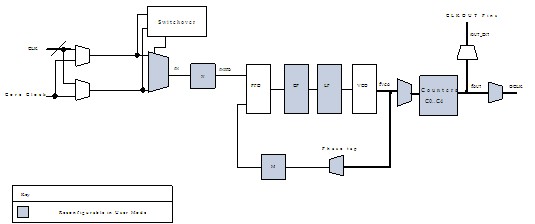

EP3C25F256C7N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP3C25F256C7N
EP3C25F256C7N

IC CYCLONE III FPGA 256-FBGA
Data Sheet
0-90: $33.60
