EP2SGX60EF1152I4

Product Summary

The EP2SGX60EF1152I4 is an FPGA to combine high-speed serial transceivers with a scalable, high-performance logic array. The EP2SGX60EF1152I4 includes 4 to 20 high-speed transceiver channels, each incorporating clock and data recovery unit (CRU) technology and embedded SERDES capability at data rates of up to 6.375 gigabits per second (Gbps). The EP2SGX60EF1152I4 is grouped into four-channel transceiver blocks and are designed for low power consumption and small die size.This scalable, high-performance architecture makes Stratix II GX devices ideal for high-speed backplane interface, chip-to-chip, and communications protocol-bridging applications.

Parametrics

EP2SGX60EF1152I4 absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground: –0.5 to 1.8 V; (2)VCCIO Supply voltage With respect to ground: –0.5 to 4.6 V; (3)VCCPD Supply voltage With respect to ground: –0.5 to 4.6 V; (4)VI DC input voltage: –0.5 to 4.6 V; (5)IOUT DC output current, per pin: –25 to 40 mA; (6)TSTG Storage temperature No bias: –65 to 150°C; (7)TJ Junction temperature BGA packages under bias: –55 to 125°C.

Features

EP2SGX60EF1152I4 features: (1)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO)buffers with performance up to 550 MHz; (2)Up to 16 global clock networks with up to 32 regional clock networks per device region; (3)High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR)filters; (4)Up to four enhanced PLLs per device provide spread spectrum, programmable bandwidth, clock switch-over, real-time PLL reconfiguration, and advanced multiplication and phase shifting; (5)Support for numerous single-ended and differential I/O standards; (6)High-speed source-synchronous differential I/O support on up to 71 channels; (7)Support for source-synchronous bus standards, including SPI-4 Phase 2 (POS-PHY Level 4), SFI-4.1, XSBI, UTOPIA IV, NPSI, and CSIX-L1; (8)Support for high-speed external memory, including quad data rate (QDR and QDRII)SRAM, double data rate (DDR and DDR2)SDRAM, and single data rate (SDR)SDRAM.

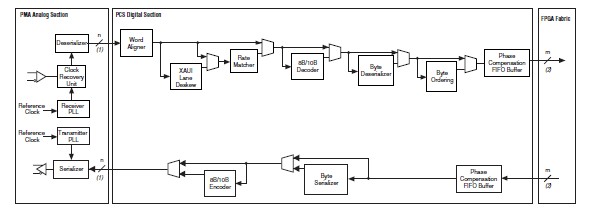

Diagrams
