Product Summary
The EP2S60F672I4N is an FPGA which is based on a 1.2-V, 90-nm, all-layer copper SRAM process and features a new logic structure that maximizes performance. And this device offers up to 9 Mbits of on-chip, TriMatrix memory for demanding, memory intensive applications and has up to 96 DSP blocks with up to 384 (18-bit x 18-bit) multipliers for efficient implementation of high performance filters and other DSP functions.
Parametrics
EP2S60F672I4N absolute maximum ratings: (1)Supply voltage: -0.5 to 1.8 V;(2)Analog power supply for PLLs: -0.5 to 1.8 V;(3)Digital power supply for PLLs: -0.5 to 1.8 V;(4)DC input voltage: -0.5 to 4.6 V;(5)DC output current, per pin: -25 to 40 mA;(6)Storage temperature: -65 to 150 °C;(7)Junction temperature: -55 to 125 °C.
Features
EP2S60F672I4N features: (1)15,600 to 179,400 equivalent LEs; (2)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources; (3)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO) buffers; (4)Up to 16 global clocks with 24 clocking resources per device region; (5)Support for design security using configuration bitstream encryption; (6)Support for high-speed external memory, including DDR and DDR2 SDRAM, RLDRAM II, QDR II SRAM, and SDR SDRAM Support for remote configuration updates; (7)Support for numerous single-ended and differential I/O standards; (8)High-speed differential I/O support with DPA circuitry for 1-Gbps performance.

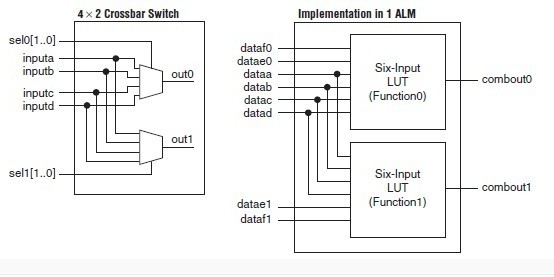

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EP2S60F672I4N |
|
IC STRATIX II FPGA 60K 672-FBGA |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
EP2S |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
EP2S130F1020C3 |
|
IC STRATIX II FPGA 130K 1020FBGA |
Data Sheet |
|
|
||||||
|
EP2S130F1020C3N |
|
IC STRATIX II FPGA 130K 1020FBGA |
Data Sheet |
|
|
||||||
|
EP2S130F1020C4 |
|
IC STRATIX II FPGA 130K 1020FBGA |
Data Sheet |
|
|
||||||
|
EP2S130F1020C4N |
|
IC STRATIX II FPGA 130K 1020FBGA |
Data Sheet |
|
|
||||||
|
EP2S130F1020C5 |
|
IC STRATIX II FPGA 130K 1020-FBG |
Data Sheet |
|
|
||||||
