Product Summary

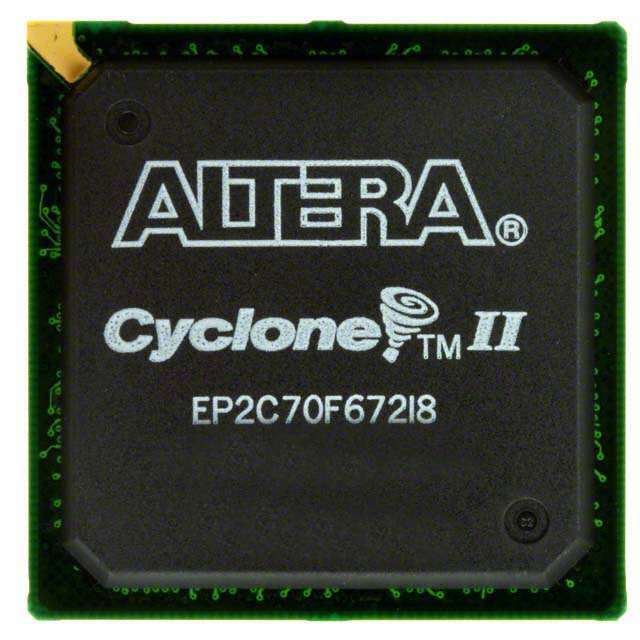

The EP2C70F672I8 is a CYCLONE II FPGA. The EP2C70F672I8 is designed as the 1.2-V, 90-nm, all-layer copper SRAM that maximizes performance, and enables device densities approaching 180,000 equivalent logic elements (LEs). Various high-speed external memory interfaces are supported, including double data rate (DDR) SDRAM and DDR2 SDRAM, RLDRAM II, quad data rate (QDR) II SRAM, and single data rate (SDR) SDRAM.

Parametrics

EP2C70F672I8 absolute maximum ratings: (1)Supply voltage: –0.5 to 1.8 V; (2)Analog power supply for PLLs: –0.5 to 1.8 V; (3)Digital power supply for PLLs: –0.5 to 1.8 V; (4)DC input voltage: –0.5 to 4.6 V; (5)DC output current, per pin: –25 to 40mA; (6)Storage temperature: –65 to 150℃; (7)Junction temperature:–55 to 125℃.

Features

EP2C70F672I8 features:(1)15,600 to 179,400 equivalent LEs;(2)New and innovative adaptive logic module (ALM), the basic building block of the Stratix II architecture, maximizes performance and resource usage efficiency;(3)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources;(4)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO) buffers;(5)High-speed DSP blocks provide dedicated implementation of multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters;(6)Up to 16 global clocks with 24 clocking resources per device region;(7)Clock control blocks support dynamic clock network enable/disable, which allows clock networks to power down to reduce power consumption in user mode;(8)High-speed differential I/O support with DPA circuitry for 1-Gbps performance.

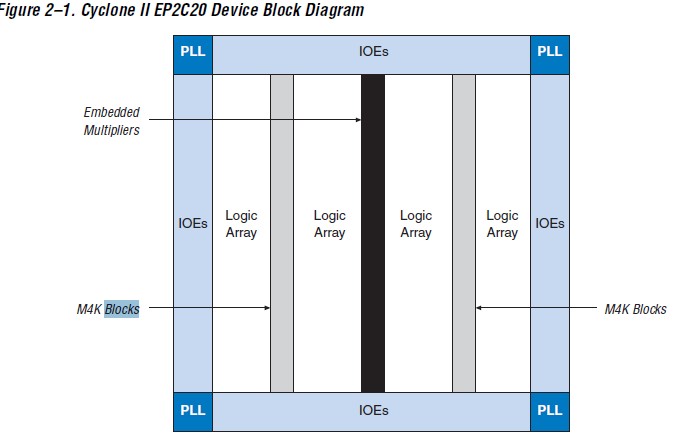

Diagrams

EP2C70F672I8 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C70F672I8
EP2C70F672I8


IC CYCLONE II FPGA 70K 672-FBGA

Data Sheet

0-40: $186.12
EP2C70F672I8N
EP2C70F672I8N


IC CYCLONE II FPGA 70K 672-FBGA

Data Sheet

0-1: $169.20
