Product Summary

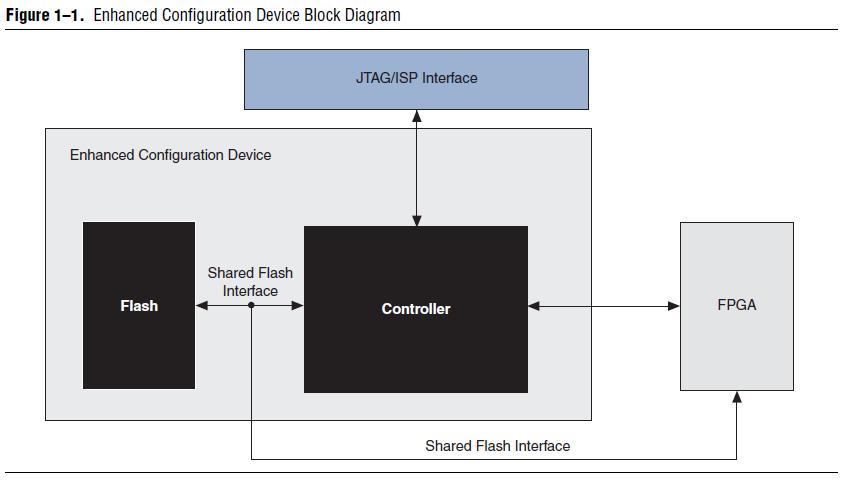

The Altera EP2C20F484C8 is an enhanced configuration device, which is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of EP2C20F484C8 is divided into two major blocks: a configuration controller and a flash memory. The flash memory of EP2C20F484C8 is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the flash memory can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete.
Parametrics
EP2C20F484C8 absolute maximum ratings: (1)Supply voltage With respect to ground: -0.2 to 4.6 V; (2)DC input voltage With respect to ground: -0.5 to 3.6 V; (3)DC VCC or ground current: 100 mA; (4)DC output current, per pin: -25 to 25 mA; (5)Power dissipation: 360 mW; (6)Storage temperature No bias: -65 to 150 ℃; (7)Ambient temperature Under bias: -65 to 135 ℃; (8)Junction temperature Under bias: 135 ℃.
Features
EP2C20F484C8 features: (1)Contains 4-, 8-, and 16-Mbit flash memories for configuration data storage: On-chip decompression feature almost doubles the effective configuration density; (2)Standard flash die and a controller die combined into single stacked chip package; (3)External flash interface supports parallel programming of flash and external processor access to unused portions of memory; (4)Page mode support for remote and local reconfiguration with up to eight configurations for the entire system.
Diagrams
