ENC28J60-I/SO

ENC28J60-I/SO, stand-alone Ethernet controller, 3.6 V, 4 mA, 20 MHz, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 1000 :	2.20 / Piece
1001 ~ 10000 :	2.00 / Piece

PartNumber:: ENC28J60-I/SO

Brand:: Microchip Technology - Microchip | Pack: SOIC | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:ENC28J60-I/SO
US $2.00 - 2.50
ENC28J60-I/SO

US $1.00 - 1.30 / Piece
(0) Remove
ENC28J60-I/SO

US $2.50 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

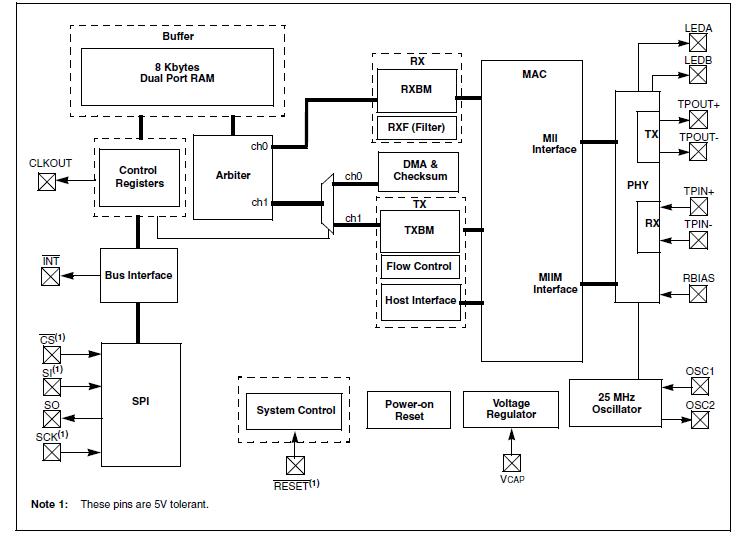

The ENC28J60-I/SO is a stand-alone Ethernet controller with an industry standard Serial Peripheral Interface(SPI). It is designed to serve as an Ethernet network interface for any controller equipped with SPI. The ENC28J60-I/SO meets all of the IEEE 802.3 specifications. It incorporates a number of packet filtering schemes to limit incoming packets.

Parametrics

ENC28J60-I/SO absolute maximum ratings: (1)Storage temperature: -65℃ to +150℃; (2)Ambient temperature under bias: -40℃ to +85℃ (Industrial); (3)0℃ to +70℃ (Commercial); (4)Voltage on VDD, VDDOSC, VDDPLL, VDDRX, and VDDTX, with respect to VSS: -0.3V to 3.6V; (5)Voltage on RESET, CS, SCK and SI, with respect to VSS: -0.3V to 6.0V; (6)Voltage on CLKOUT, SO, OSC1, OSC2, LEDA and LEDB, with respect to VSS: -0.3V to VDD + 0.3V; (7)Voltage on TPIN+/- and TPOUT+/- with respect to VSS: -0.3V to 5.0V; (8)VCAP with respect to VSS: -0.3V to 2.75V; (9)ESD protection on all pins: 2 kV; (10)Current sourced or sunk by LEDA, LEDB: 12 mA; (11)Current sourced or sunk by CLKOUT: 8 mA; (12)Current sourced or sunk by INT and SO: 4 mA.

Features

ENC28J60-I/SO features: (1)IEEE 802.3 compatible Ethernet controller; (2)Integrated MAC and 10BASE-T PHY; (3)Supports one 10BASE-T port with automatic polarity detection and correction; (4)Supports Full and Half-Duplex modes; (5)Programmable automatic retransmit on collision; (6)Programmable padding and CRC generation; (7)Programmable automatic rejection of erroneous packets; (8)SPI Interface with clock speeds up to 20 MHz.
