Product Summary

The EN25F16 is a 16M-bit (2048K-byte) Serial Flash memory, with advanced write protection
mechanisms, accessed by a high speed SPI-compatible bus. The memory can be programmed 1 to
256 bytes at a time, using the Page Program instruction.

Features

? Single power supply operation
- Full voltage range: 2.7-3.6 volt
? 16 Mbit Serial Flash
- 16 M-bit/2048 K-byte/8192 pages
- 256 bytes per programmable page
? High performance
- 100MHz clock rate
? Low power consumption
- 5 mA typical active current
- 1 μA typical power down current

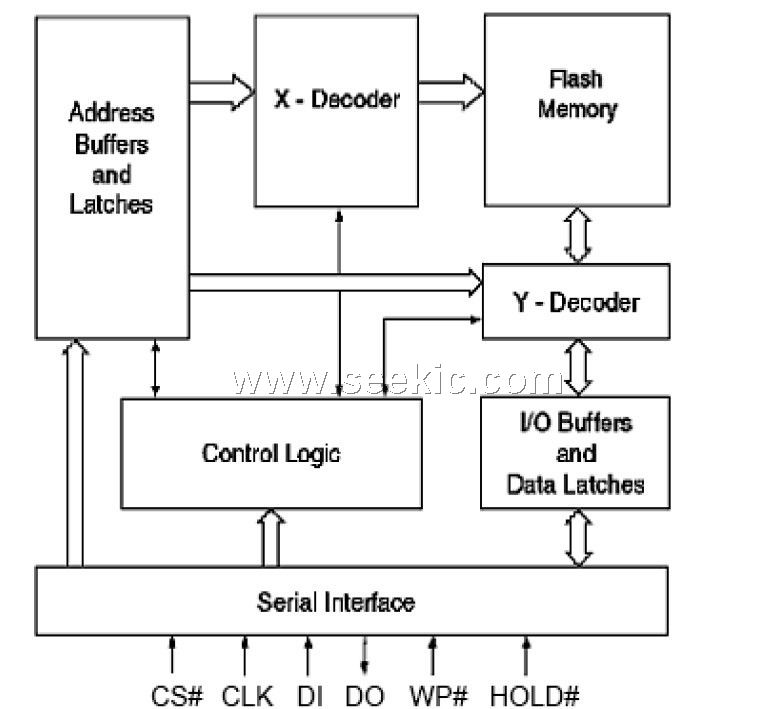

Diagrams
