Product Summary

The ECHU1H272JX5 is a Film Chip Capacitor. Applications include: Time-constant, Filtering, Oscillation and resonance.

Parametrics

ECHU1H272JX5 specifications: (1)Operating temp.range: -55 to 125℃; (2)Rated voltage: 10VDC, 16VDC, 50VDC; (3)Capacitance range: 0.0001 to 0.033μF (E12); (4)Capacitance tolerance: ±2%(G), ±5%(J); (5)Withstand voltage: Between terminals: Rated volt. (VDC)×150%, 60s; (6)Dissipation factor: 0.6% or less(20℃, 1kHz); (7)Insulation resistance: 10VDC: 3000MΩ or more(20℃, 10VDC, 60s); 16VDC: 3000MΩ or more(20℃, 10VDC, 60s); 50VDC: 3000MΩ or more(20℃, 50VDC, 60s); (8)Soldering conditions: Reflow soldering: 260℃ max. and 30sec max. at more than 230℃(Temp. at cap. surface).

Features

ECHU1H272JX5 features: (1)Small in size (minimum size 1.6×0.8mm); (2)85℃, 85%RH, W.V. × 1.0 for 500 hours; (3)Applicable for reflow soldering.

Diagrams

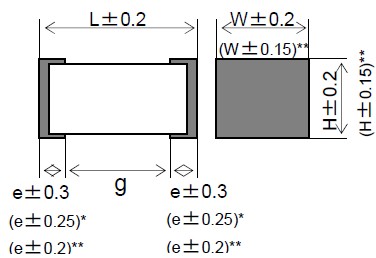

ECHU1H272JX5 dimensions
