Product Summary

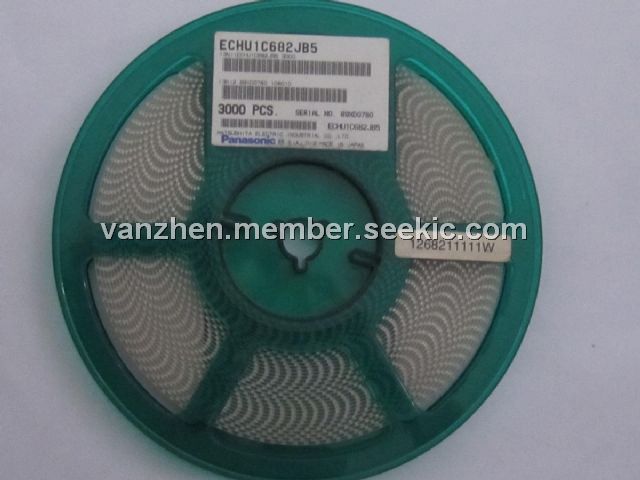

The ECHU1C682JB5 is a Film Chip Capacitor. Applications include: Time-constant, Filtering, Oscillation and resonance.

Parametrics

ECHU1C682JB5 specifications: (1)Operating temp.range: -55 to 125℃; (2)Rated voltage: 16VDC, 50VDC; (3)Capacitance range: 0.0001 to 0.1μF (E12); (4)Capacitance tolerance: ±2%(G), ±5%(J); (5)Withstand voltage: Between terminals: Rated volt. (VDC)×175% 1 to 5s; (6)Dissipation factor: ≦0.6%(20℃, 1kHz); (7)Insulation resistance: 16VDC: ≧3000MΩ(20℃, 10VDC 60s); 50VDC: ≧3000MΩ(20℃, 50VDC 60s); (8)Soldering conditions: Flow soldering: 260℃ max. 5sec max.; Reflow soldering: 260℃ max. and 30sec max. at more than 230℃(Temp. at cap. surface).

Features

ECHU1C682JB5 features: (1)Small in size (minimum size 2.0×1.25mm); (2)85℃, 85%RH, W.V. × 1.0 for 500 hours; (3)Applicable for both flow and reflow soldering.

Diagrams

ECHU1C682JB5 dimensions
