DS90LV048ATMTC

3V LVDS Quad CMOS, Differential Line Receiver, 2.7ns, TSSOP-16, 40mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: DS90LV048ATMTC

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-18

From Other Seller

Part Number:DS90LV048ATMTC
US $0.30 - 0.50
Quantity:

piece

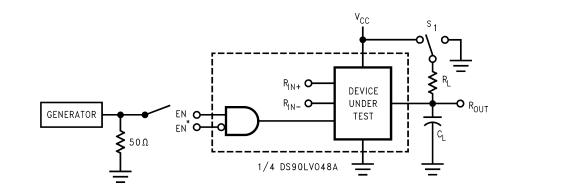

Product Summary

The DS90LV048ATMTC is a quad CMOS flow-through differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The DS90LV048ATMTC is designed to support data rates in excess of 400 Mbps (200MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS90LV048ATMTC accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels.

Parametrics

DS90LV048ATMTC absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)Input Voltage (RIN+,RIN-):-0.3V to 3.9V; (3)Enable Input Voltage (EN, EN*):-0.3V to (VCC + 0.3V); (4)Output Voltage (ROUT):-0.3V to (VCC + 0.3V); (5)Lead Temperature Range Soldering(4 sec.):+260℃; (6)Maximum Junction Temperature:+150℃.

Features

DS90LV048ATMTC features: (1)>400 Mbps (200 MHz) switching rates; (2)Flow-through pinout simplifies PCB layout; (3)150 ps channel-to-channel skew (typical); (4)100 ps differential skew (typical); (5)2.7 ns maximum propagation delay; (6)3.3V power supply design; (7)High impedance LVDS inputs on power down; (8)Low Power design (40mW 3.3V static); (9)Interoperable with existing 5V LVDS drivers; (10)Accepts small swing (350 mV typical) differential signal levels; (11)Supports open, short and terminated input fail-safe; (12)0V to -100mV threshold region; (13)Conforms to ANSI/TIA/EIA-644 Standard; (14)Industrial temperature operating range (-40℃ to +85℃); (15)Available in SOIC and TSSOP package.
