Product Summary

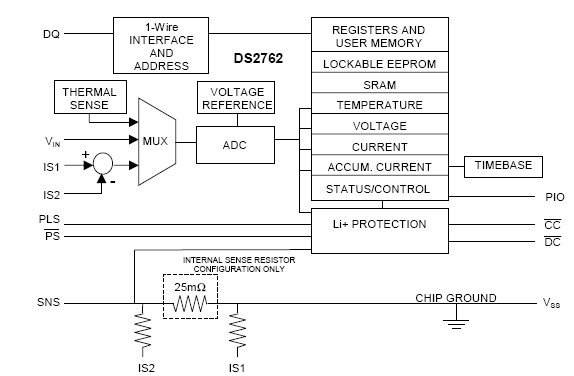

The DS2762BE+025 is a High-Precision Li+ Battery Monitor. The DS2762BE+025 is a data-acquisition, information-storage, and safety protection device tailored for cost-sensitive battery pack applications. This low-power device integrates precise temperature, voltage, and current measurement, nonvolatile (NV) data storage, and Li+ protection into the small footprint of either a TSSOP package or flip-chip package. The DS2762BE+025 is a key component in applications including remaining capacity estimation, safety monitoring, and battery specific data storage. The applications of the DS2762BE+025 include PDAs, Cell Phones/Smart phones and Digital Cameras.

Parametrics

DS2762BE+025 absolute maximum ratings: (1)Voltage Range on PLS and CC Pin, Relative to VSS: -0.3V to +18V; (2)Voltage Range on PIO Pin, Relative to VSS: -0.3V to +12V; (3)Voltage Range on Any Other Pin, Relative to VSS: -0.3V to +6V; (4)Continuous Internal Sense Resistor Current: ±2.5A; (5)Pulsed Internal Sense Resistor Current: ±50A for <100μs/s, <1000 pulses; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -55℃ to +125℃.

Features

DS2762BE+025 features: (1)Host Alerted When Accumulated Current or Temperature Exceeds User-Selectable Limits; (2)0V Battery Recovery Charge; (3)Voltage Measurement with 4.88mV Resolution; (4)Temperature Measurement Using Integrated Sensor with 0.125℃ Resolution; (5)System Power Management and Control Feature Support; (6)32 Bytes of Lockable EEPROM; (7)16 Bytes of General-Purpose SRAM; (8)Dallas 1-Wire?Interface with Unique 64-Bit Device Address.
