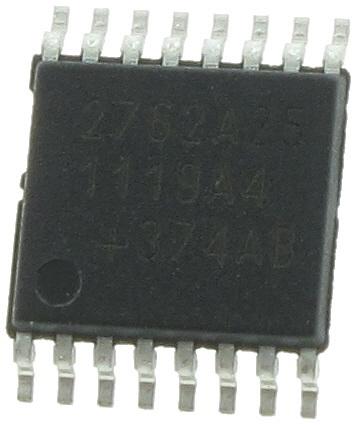

DS2762AE+025

high-precision Li+ battery monitor, TSSOP, 25mΩ, 0.625mA, 15.625μV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: DS2762AE+025

Brand:: Maxim Integrated Products - Maxim | Pack: TSSOP | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:DS2762AE+025
US $0.30 - 0.50
Quantity:

piece

Product Summary

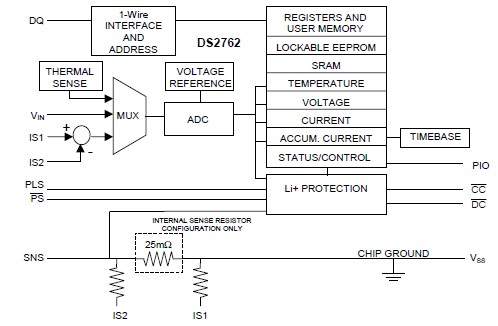

The DS2762AE+025 is a high-precision Li+ battery monitor. It is a data-acquisition, information-storage, and safetyprotection device tailored for cost-sensitive battery pack applications. The DS2762AE+025 integrates precise temperature, voltage, and current measurement, nonvolatile (NV) data storage, and Li+ protection into the small footprint of either a TSSOP package or flip-chip package. The DS2762AE+025 is a key component in applications including remaining capacity estimation, safety monitoring, and batteryspecific data storage. It is used in PDAs, Cell Phones/Smartphones, Digital Cameras.

Parametrics

DS2762AE+025 absolute maximum ratings: (1)Voltage Range on PLS and CC Pin, Relative to VSS: -0.3V to +18V; (2)Voltage Range on PIO Pin, Relative to VSS: -0.3V to +12V; (3)Voltage Range on Any Other Pin, Relative to VSS: -0.3V to +6V; (4)Continuous Internal Sense Resistor Current: ±2.5A; (5)Pulsed Internal Sense Resistor Current: ±50A for <100μs/s, <1000 pulses; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -55℃ to +125℃.

Features

DS2762AE+025 features: (1)Host Alerted When Accumulated Current or Temperature Exceeds User-Selectable Limits; (2)0V Battery Recovery Charge; (3)Voltage Measurement with 4.88mV Resolution; (4)Temperature Measurement Using Integrated Sensor with 0.125℃ Resolution; (5)System Power Management and Control Feature Support; (6)32 Bytes of Lockable EEPROM; (7)16 Bytes of General-Purpose SRAM; (8)Dallas 1-Wire Interface with Unique 64-Bit Device Address; (9)Low-Power Consumption: Active Current: 60μA typ, 90μA max; Sleep Current: 1μA typ, 2μA max.
