Product Summary
The DS2431 is a 1024-bit, 1-Wire? EEPROM chip organized
as four memory pages of 256 bits each. Data is
written to an 8-byte scratchpad, verified, and then
copied to the EEPROM memory. As a special feature, the
four memory pages can individually be write protected or
put in EPROM-emulation mode, where bits can only be
changed from a 1 to a 0 state. The DS2431 communicates
over the single-conductor 1-Wire bus. The communication
follows the standard 1-Wire protocol. Each
device has its own unalterable and unique 64-bit ROM
registration number that is factory lasered into the chip.
The registration number is used to address the device in
a multidrop, 1-Wire net environment.
Features
1024 Bits of EEPROM Memory Partitioned Into
Four Pages of 256 Bits
? Individual Memory Pages Can Be Permanently
Write Protected or Put in EPROM-Emulation Mode
(“Write to 0”)
? Switchpoint Hysteresis and Filtering to Optimize
Performance in the Presence of Noise
? IEC 1000-4-2 Level 4 ESD Protection (±8kV
Contact, ±15kV Air, Typical)
? Reads and Writes Over a Wide Voltage Range
from 2.8V to 5.25V from -40°C to +85°C
? Communicates to Host with a Single Digital
Signal at 15.4kbps or 125kbps Using 1-Wire
Protocol
? Also Available as Automotive Version Meeting
AEC-Q100 Grade 1 Qualification Requirements
(DS2431-A1; Refer to the IC Data Sheet for
Details)

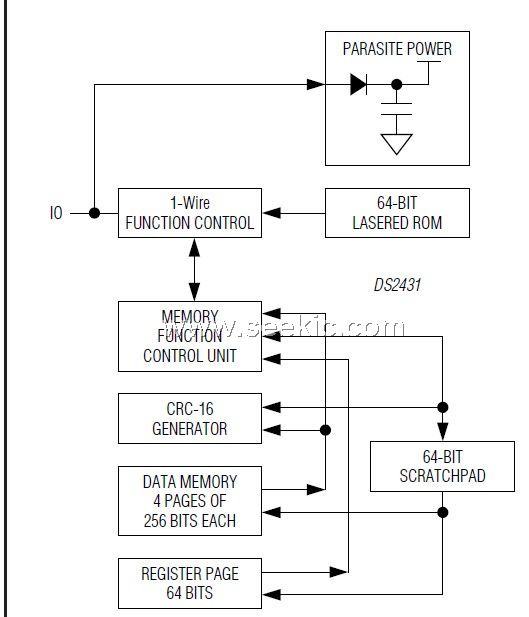

Diagrams
