Product Summary
The DRV593VFP is a high-efficiency, high-current power amplifier ideal for driving a wide variety of thermoelectric cooler elements in systems powered from 2.8 V to 5.5 V. The operation of the device requires only one inductor and capacitor for the output filter, saving significant printed-circuit board area. Pulse-width modulation (PWM) operation and low output stage on-resistance significantly decrease power dissipation in the amplifier. The applications of the DRV593VFP include Thermoelectric Cooler (TEC) Driver, Laser Diode Biasing.
Parametrics
DRV593VFP absolute maximum ratings: (1)Supply voltage, AVDD, PVDD: -0.3 V to 5.5 V; (2)Input voltage, VI: -0.3 V to VDD + 0.3 V; (3)Output current, IO (FAULT0, FAULT1): 1 mA; (4)Continuous total power dissipation: See Dissipation Rating Table; (5)Operating free-air temperature range, TA: -40℃ to 85℃; (6)Operating junction temperature range, TJ: -40℃ to 150℃; (7)Storage temperature range, Tstg: -65℃ to 165℃.
Features
DRV593VFP features: (1)Operation Reduces Output Filter Size and Cost by 50% Compared to DRV591; (2)±3-A Maximum Output Current; (3)Low Supply Voltage Operation: 2.8 V to 5.5 V; (4)High Efficiency Generates Less Heat; (5)Overcurrent and Thermal Protection; (6)Fault Indicators for Overcurrent, Thermal and Undervoltage Conditions; (7)Two Selectable Switching Frequencies; (8)Internal or External Clock Sync; (9)PWM Scheme Optimized for EMI; (10)9×9 mm PowerPAD. Quad Flatpack Package.

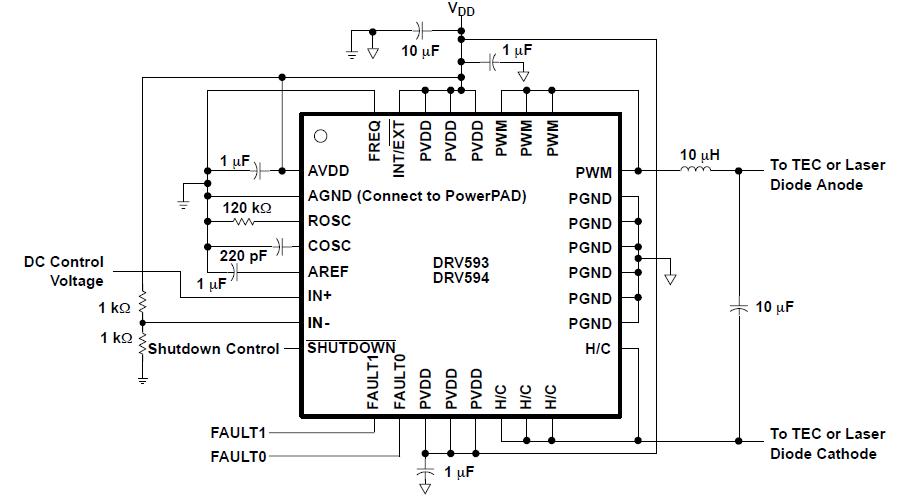

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DRV593VFP |
Texas Instruments |
Power Driver ICs +/-3 A High-Eff |
Data Sheet |
|
|
||||||||||
|
DRV593VFPR |
Texas Instruments |
Power Driver ICs +/-3 A High-Eff |
Data Sheet |
|
|
||||||||||
