DRV591VFP

DRV591VFP, high-efficiency, high-current power amplifier, QFP, -0.3 to 5.5 V, 1mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	3.00 / Piece
501 ~ 1000 :	2.00 / Piece
1001 ~ 3000 :	1.00 / Piece

PartNumber:: DRV591VFP

Brand:: Texas Instruments - TI | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:DRV591VFP
US $1.00 - 3.00
Quantity:

piece

Product Summary

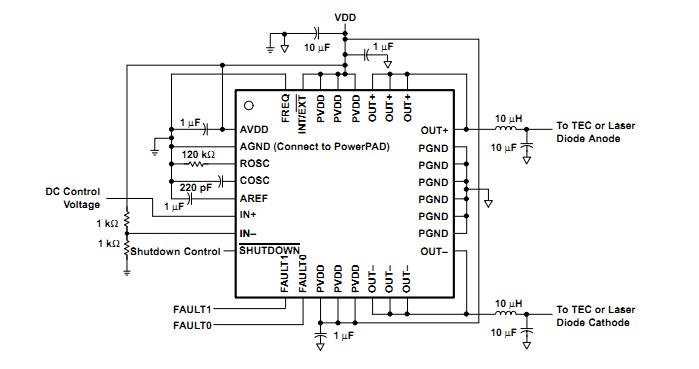

The DRV591VFP is a high-efficiency, high-current power amplifier ideal for driving a wide variety of thermoelectric cooler elements in systems powered from 2.8 V to 5.5 V. PWM operation and low output stage on-resistance significantly decrease power dissipation in the amplifier. The applications of the DRV591VFP include Thermoelectric Cooler (TEC) Driver and Laser Diode Biasing.

Parametrics

DRV591VFP absolute maximum ratings: (1)Supply voltage, AVDD, PVDD: –0.3 to 5.5 V; (2)Input voltage, VI: –0.3 to VDD + 0.3 V; (3)Output current, IO (FAULT0, FAULT1:) 1 mA; (4)Operating free-air temperature range, TA: –40 to 85℃; (5)Operating junction temperature range, TJ: –40 to 150℃; (6)Storage temperature range, Tstg: –65 to 165℃.

Features

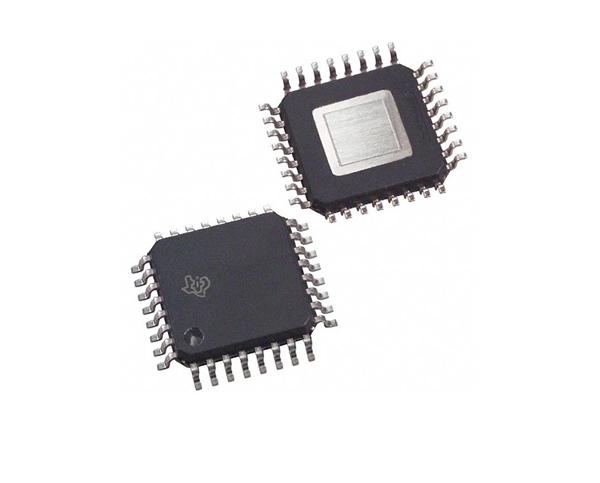

DRV591VFP features: (1)±3-A Maximum Output Current; (2)Low Supply Voltage Operation: 2.8 V to 5.5 V; (3)High Efficiency Generates Less Heat; (4)Over-Current and Thermal Protection; (5)Fault Indicators for Over-Current, Thermal and Under-Voltage Conditions; (6)Two Selectable Switching Frequencies; (7)Internal or External Clock Sync; (8)PWM Scheme Optimized for EMI; (9)9×9 mm PowerPAD Quad Flatpack.
