Product Summary
The DM9161EP is a physical layer, single-chip, and low power transceiver for 100BASE-TX 100BASE-FX and 10BASE-T operations. On the media side, it provides a direct interface either to Unshielded Twisted Pair Category 5 Cable (UTP5) for 100BASE-TX Fast Ethernet, or UTP5/UTP3 Cable for 10BASE-T Ethernet. Through the Media Independent Interface (MII), the DM9161EP connects to the Medium Access Control (MAC) layer, ensuring a high inter-operability from different vendors. The DM9161EP uses a low power and high performance CMOS process. It contains the entire physical layer functions of 100BASE-TX as defined by IEEE802.3u, including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10BASE-TX Encoder/Decoder (ENC/DEC), and Twisted Pair Media Access Unit (TPMAU). The DM9161EP provides a strong support for the auto-negotiation function, utilizing automatic media speed and protocol selection. Furthermore, due to the built-in wave-shaping filter, the DM9161EP needs no external filter to transport signals to the media in 100MBASE-TX or 10MBASE-T Ethernet operation.
Parametrics
DM9161EP absolute maximum ratings: (1)Supply Voltage: -0.3V to 3.6V; (2)DC Input Voltage (VIN): -0.5V to 5.5V; (3)DC Output Voltage(VOUT): -0.3V to 3.6V; (4)Storage Temperature Rang (Tstg): -65℃ to +150℃; (5)Case Temperature: 0℃ to 85℃; (6)Lead Temp. (TL, Soldering, 10 sec.): 260℃.
Features
DM9161EP features: (1)Fully complies with IEEE 802.3u 10Base-T/100Base-TX/FX; (2)Support Auto-Negotiation function, compliant with IEEE 802.3u; (3)Fully integrated Physical layer single chip with direct interface to magnetic; (4)Integrated 10Base-T and 100Base-TX transceiver; (5)Selectable repeater or node mode; (6)Far end fault signaling option in FX mode; (7)Selectable MII or RMII (Reduced MII) interface, at he 100BASE-TX; (8)Selectable GPSI (7-Wired) or MII mode at the 10Base-T.; (9)Selectable twisted-pair or fiber mode output; (10)Selectable full-duplex or half-duplex operation; (11)MII management interface with maskable interrupt output capability; (12)Provide Loopback mode for easy system diagnostics; (13)LED status outputs indicate Link/ Activity, Speed10/100 and; (14)Full-duplex/Collision.; (15)Single low power Supply of 3.3V with 0.35μm CMOS technology; (16)Very Low Power consumption modes; (17)Compatible with 3.3V and 5.0V tolerant I/Os; (18)48-pin LQFP small package (1x1 cm).

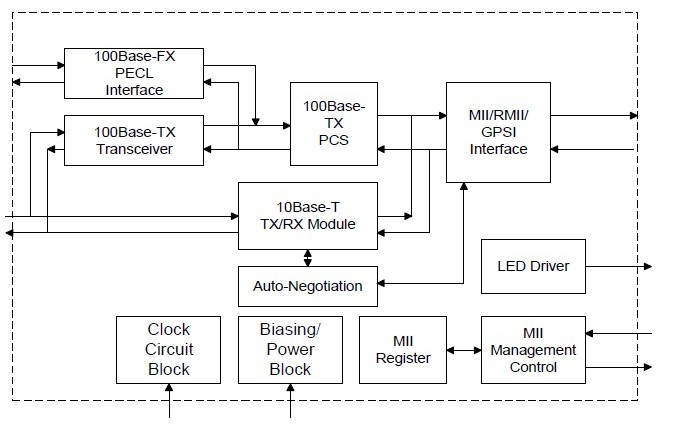

Diagrams
