Product Summary

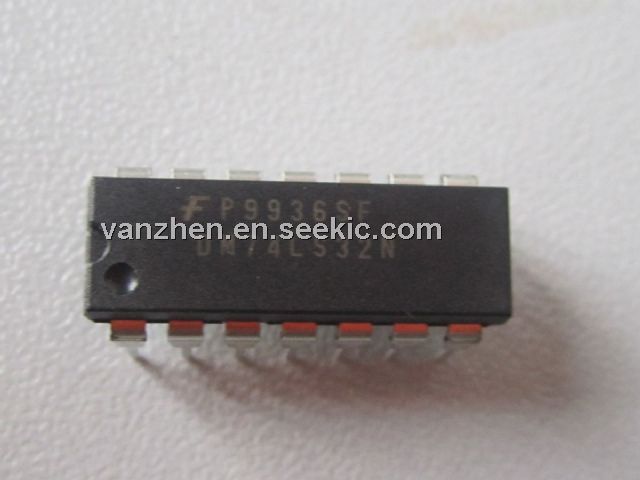

The DM74LS32N is a Quad 2-Input OR Gate.
Parametrics
DM74LS32N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: -65℃ to +150℃.
Features
DM74LS32N features: (1)Input Clamp Voltage : -1.5 V; (2)HIGH Level Output Voltage : 0.35V; (3)LOW Level Output Voltage :0.25 V; (4)Input Current @ Max Input Voltage : 0.1 mA; (5)HIGH Level Input Current : 20 μA; (6)LOW Level Input Current : -0.36 mA.

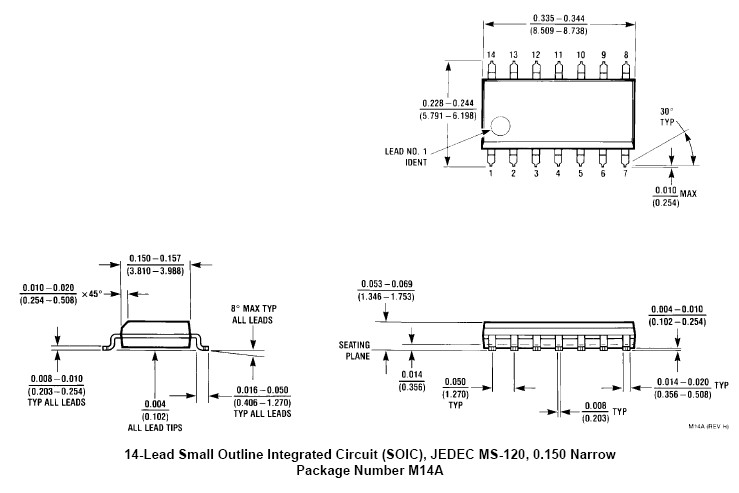

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM74LS32N |
Fairchild Semiconductor |
IC GATE OR QUAD 2 INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||
