Product Summary
The DAC08AQ is an 8-bit monolithic digital-to-analog converter. It provides very high-speed performance coupled with low cost and outstanding applications flexibility. The compact size and low power consumption make the DAC08AQ attractive for portable and military/aerospace applications; devices processed to MIL-STD-883, Level B are available. The applications of the DAC08AQ include 8-bit, 1 us A/D converters, servo motor and pen drivers, waveform generators, audio encoders and attenuators, analog meter drivers, programmable power supplies, CRT display drivers, high-speed modems and other applications where low cost, high speed and complete input/output versatility are required.
Parametrics
DAC08AQ absolute maximum ratings: (1)Operating Temperature:–55℃ to +125℃; (2)Junction Temperature (TJ):–65℃ to +150℃; (3)Storage Temperature:–65℃ to +150℃; (4)Lead Temperature (Soldering, 60 sec):300℃; (5)V+ Supply to V– Supply:36 V; (6)Logic Inputs:V– to V– plus 36 V; (7)VLC:V– to V+; (8)Analog Current Outputs (at VS– = 15 V):4.25 mA; (9)Reference Input (V14 to V15):V– to V+; (10)Reference Input Differential Voltage(V14 to V15):±18 V; (11)Reference Input Current (I ):5.0 mA.
Features
DAC08AQ features: (1)Fast Settling Output Current: 85 ns; (2)Full-Scale Current Prematched to 61 LSB; (3)Direct Interface to TTL, CMOS, ECL, HTL, PMOS; (4)Nonlinearity to 0.1% Maximum Over Temperature Range; (5)High Output Impedance and Compliance:–10 V to +18 V; (6)Complementary Current Outputs; (7)Wide Range Multiplying Capability: 1 MHz Bandwidth; (8)Low FS Current Drift: 610 ppm/℃; (9)Wide Power Supply Range: 64.5 V to 618 V; (10)Low Power Consumption: 33 mW @ 65 V; (11)Low Cost; (12)Available in Die Form.

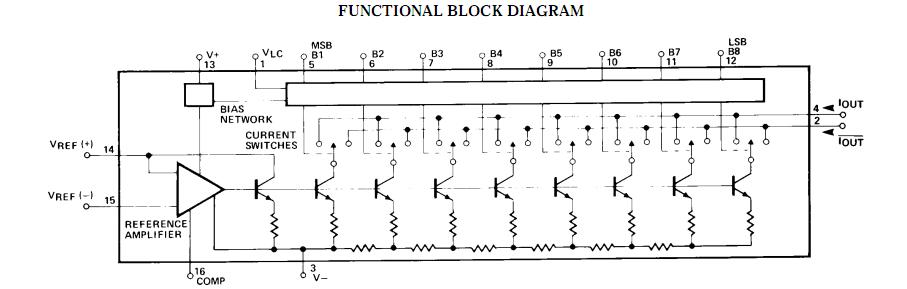

Diagrams
