Product Summary

The DA05A is a range of SMD delay lines suitable for automatic placement and reflow, and so do not add the excessive production costs associated with through hole devices. The DA05A is designed to delay video bandwidth signal with minimal distortion. The equalised lines allow small delay differences between signals to be matched and give excellent response to pulse and bar test signals. The DA05A may also be cascaded to give wider ranges of delay times.

Features

DA05A features: (1)Surface mount compatible; (2)Small size, low cost; (3)Video performance; (4)50, 75 or 200 ohms.

Diagrams

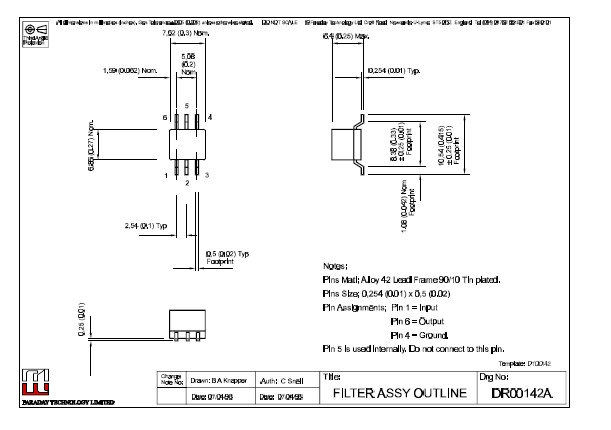

DA05A pin connection
