Product Summary

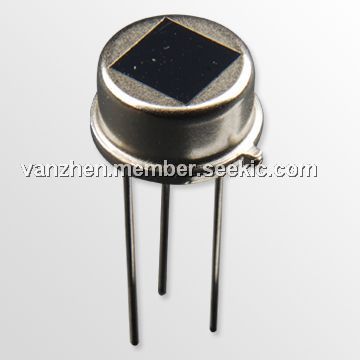

The D205B is a Pyroelectric Infrared Radial Sensor.
Parametrics
D205B absolute maximum ratings: (1)Offset Voltage: 0.3~1.2V; (2)Supply Voltage: 3V to 15V; (3)Operating Temp: -30℃ to 70℃; (4)Storage Temp: -40℃ to 80℃.
Features
D205B features: (1)Encapsulation Type TO-5; (2)IR Receiving Electrode 0.7× 2.4mm, 4elements; (3)Window Size 4.9× 4.9mm; (4)Spectral Response 5— 14μ m; (5)Transmittance ≥ 75%; (6)Output Signal[Vp-p] ≥ 5000mV; (7)Sensitivity ≥ 4300V/W; (8)Noise[Vp-p] < 70mV; (9)Output Balance < 10%.
 |
