Product Summary

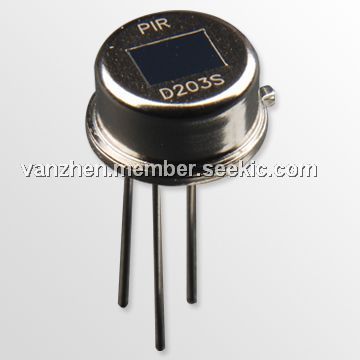

The D203S is a Pyroelectric Infrared Radial Sensor.

Parametrics

D203S absolute maximum ratings: (1)Offset Voltage: 0.3-1.2V; (2)Supply Voltage: 3-15V; (3)Operating Temp.: -30℃ - 70℃; (4)Storage Temp.: -40℃ - 80℃.

Features

D203S features: (1)Encapsulation Type: TO-5; (2)IR Receiving Electrode: 2×1mm, 2 elements; (3)Window Size: 4×3mm; (4)Spectral Response: 5-14μm; (5)Transmittance: ≥75%; (6)Signal Output [Vp-p]: ≥3500mV; (7)Sensitivity: ≥3300V/W; (8)Noise[Vp-p]: <70mV; (9)Output Balance: <10%.

Diagrams

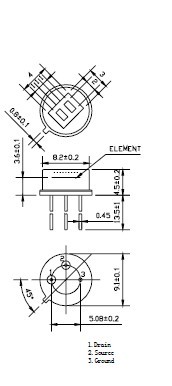

D203S package dimensions
