Product Summary

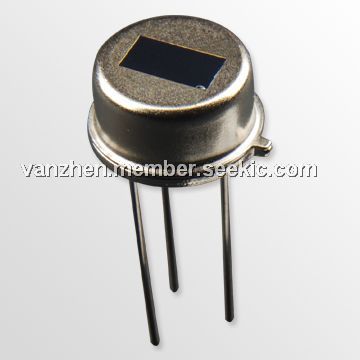

The D202X is a Pyroelectric Infrared radial sensor.

Parametrics

D202X absolute maximum ratings: (1)Offset Voltage: 0.3-1.2V; (2)Supply Voltage: 3-15V; (3)Operating Temp: -30℃ - 70℃; (4)Storage Temp: -40℃ - 80℃.

Features

D202X features: (1)Encapsulation Type: TO-5; (2)IR Receiving Electrode: 2×1mm, 2elements; (3)Window Size: 2×3mm; (4)Spectral Response: 5-14μm; (5)Transmittance: ≥75%; (6)Output Signal[Vp-p] : ≥3300mV; (7)Sensitivity: ≥3100V/W; (8)Noise[Vp-p] : <70mV; (9)Output Balance: <10%.

Diagrams

D202X package dimensions
