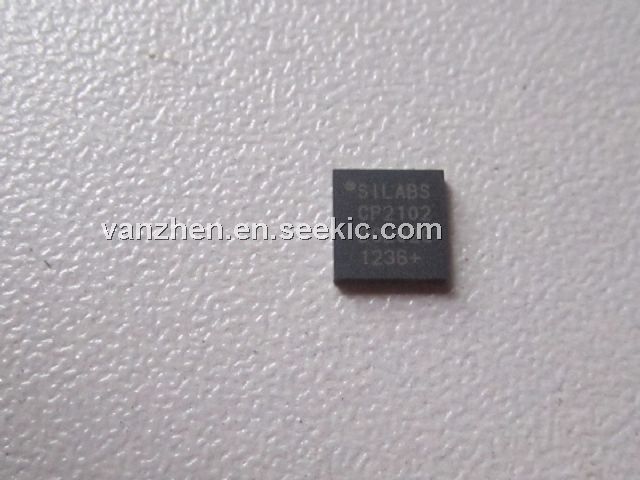

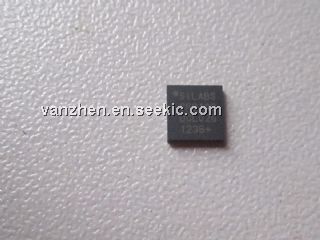

CP2102

CP2102, highly-integrated USB-to-UART Bridge Controller, QFN, 100mA, 5.8V, Silicon image

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.00 / Piece
100 ~ 1000 :	0.80 / Piece
1000 ~ 100000 :	0.60 / Piece

PartNumber:: CP2102

Brand:: Silicon image - Silicon | Pack: QFN | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-13

From Other Seller

Part Number:CP2102
US $0.60 - 1.00
CP2102 Male USB 2.0 to TTL UART Module Serial Converter STC PRGMR Free

US $2.00 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

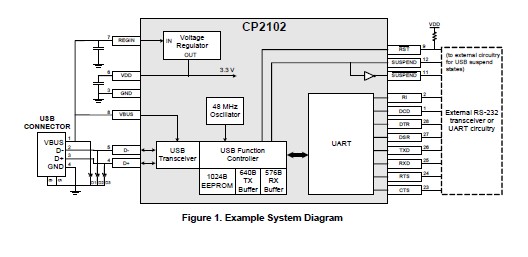

The CP2102 is a highly-integrated USB-to-UART Bridge Controller providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package. No other external USB components are required. The on-chip EEPROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The CP2102 is programmed on-board via the USB allowing the programming step to be easily integrated into the product manufacturing and testing process.

Parametrics

CP2102 absolute maximum ratings: (1)Ambient temperature under bias: –55 to 125℃; (2)Storage Temperature: –65 to 150℃; (3)Voltage on any I/O Pin or RST with respect to GND: –0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: –0.3 to 4.2 V; (5)Maximum Total current through VDD and GND: 500 mA; (6)Maximum output current sunk by RST or any I/O pin: 100mA.

Features

CP2102 features: (1)Single-Chip USB to UART Data Transfer; (2)USB Function Controller; (3)Asynchronous Serial Data BUS (UART); (4)Virtual COM Port Device Drivers; (5)USBXpress Direct Driver Support; (6)Temperature Range: –40 to +85℃; (7)Upgrade of RS-232 legacy devices to USB; (8)Cellular phone USB interface cable; (9)PDA USB interface cable; (10)USB to RS-232 serial adapter.
