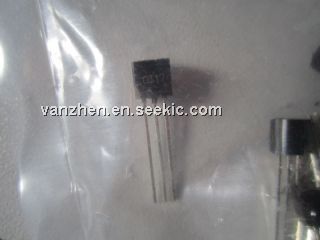

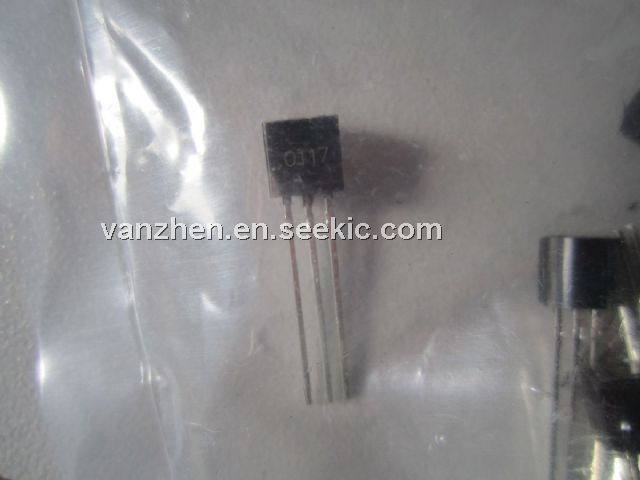

Product Summary

The CL0117 is a low-end white LED lamp driver with one dry/rechargeable batteries(input voltage:0.8V~1.5V). The CL0117 applications are: (1)LED torch; (2)LED portable lighting; (3)LED flashlights.

Parametrics

CL0117 absolute maximum ratings: (1)Input Voltage One series battery: 0.8～1.5 V; (2)Inductor Color circle inducor: 47 uH.

Features

CL0117 features: (1)Only an external inductor; (2)Operating range is 0.8V~1.5V; (3)Maximum driving efficiency is 80%.

Diagrams

CL0117 pin connection
