Product Summary

The CDCV304PW is a high-performance, low-skew, general-purpose PCI-X compliant clock buffer. It distributes one input clock signal (CLKIN) to the output clocks (1Y[0:3]). It is specifically designed for use with PCI-X applications. The CDCV304PW operates at 3.3 V and 2.5 V and is therefore compliant to the 3.3-V PCI-X specifications. The CDCV304PW is characterized for operation from –40 to 85℃ for automotive and industrial applications.

Parametrics

CDCV304PW absolute maximum ratings: (1)Supply voltage range, VDD: –0.5 V to 4.3 V; (2)Input voltage range, VI (2) (3): –0.5 V to VDD + 0.5 V; (3)Output voltage range, VO (2) (3): –0.5 V to VDD + 0.5 V; (4)Input clamp current, IIK (VI＜0 or VI＞VDD): ±50 mA; (5)Output clamp current, IOK (VO ＜ 0 or VO ＞VDD): ±50 mA; (6)Continuous total output current, IO (VO = 0 to VDD): ±50 mA; (7)Package thermal impedance, qJA: PW package: 230.5℃/W; (8)Storage temperature range Tstg: –65 to 150℃.

Features

CDCV304PW features: (1)General-Purpose and PCI-X 1:4 Clock Buffer; (2)Operating Frequency 0 MHz to 200 MHz General-Purpose; (3)Low Output Skew: ＜100 ps; (4)Distributes One Clock Input to One Bank of Four Outputs; (5)Output Enable Control that Drives Outputs Low when OE is Low; (6)Operates from Single 3.3-V Supply or 2.5-V Supply; (7)PCI-X Compliant; (8)8-Pin TSSOP Package.

Diagrams

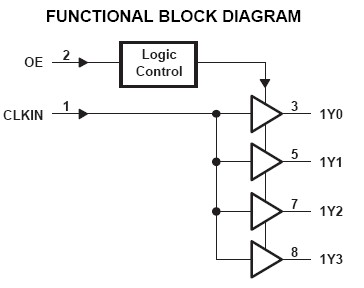

CDCV304PW block diagram
