Product Summary

The CC1150RSTR is a Low Power Sub-1 GHz RF Transmitter. The CC1150RSTR is a low cost true single chip UHF transmitter designed for very low power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 315, 433, 868 and 915 MHz, but can easily be programmed for operation at other frequencies in the 300-348 MHz, 400-464 MHz and 800-928 MHz bands. The RF transmitter is integrated with a highly configurable baseband modulator. The modulator supports various modulation formats and has a configurable data rate up to 500 kBaud. The CC1150RSTR provides extensive hardware support for packet handling, data buffering and burst transmissions.

Parametrics

CC1150RSTR absolute maximum ratings: (1)Supply voltage: –0.3 to 3.6 V ; (2)Voltage on any digital pin: –0.3 to VDD+0.3 V; (3)Voltage on the pins RF_P, RF_N and DCOUPL: –0.3 to 2.0 V; (4)Voltage ramp-up: 120 kV/μs; (5)Input RF level: +10 dBm; (6)Storage temperature range: –50 to 150 ℃; (7)Solder reflow temperature: 260 ℃.

Features

CC1150RSTR features: (1)Small size (QLP 4x4 mm package, 16 pins); (2)True single chip UHF RF transmitter; (3)Frequency bands: 300-348 MHz, 400-464 MHz and 800-928 MHz; (4)Programmable data rate up to 500 kBaud; (5)Low current consumption; (6)Programmable output power up to +10 dBm for all supported frequencies; (7)Programmable baseband modulator; (8)Ideal for multi-channel operation; (9)Very few external components: Completely on-chip frequency synthesizer, no external filters needed; (10)Configurable packet handling hardware; (11)Suitable for frequency hopping systems due to a fast settling frequency synthesizer; (12)Optional Forward Error Correction with interleaving; (13)64-byte TX data FIFO.

Diagrams

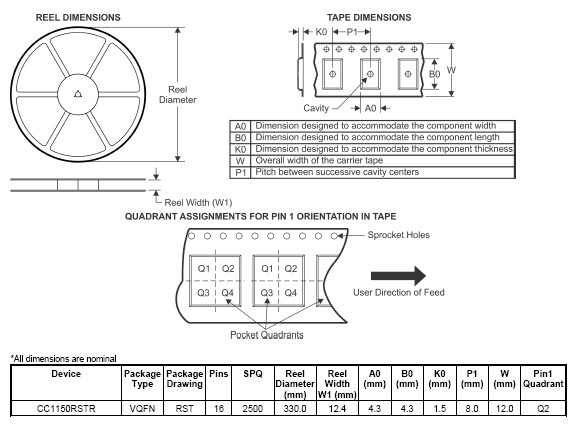

CC1150RSTR dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CC1150RSTR
CC1150RSTR
Texas Instruments
RF Transmitter UHF TRANSMITTER TAPE AND REEL
Data Sheet
0-1: $1.70
1-25: $1.46
25-100: $1.33
100-250: $1.21
CC1150RSTRG3
CC1150RSTRG3
Texas Instruments
RF Transmitter Highly Int Multich RF Transmitter
Data Sheet
0-1860: $0.89
1860-2000: $0.86
2000-2500: $0.86
2500-5000: $0.83
