Product Summary

The CBT3257APW is a quad 1-of-2 high-speed TTL-compatible multiplexer/demultiplexer. The low ON-state resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise.

Parametrics

CBT3257APW absolute maximum ratings: (1)supply voltage: -0.5 to +7.0 V; (2)input voltage: -0.5 to +7.0 V; (3)continuous current through each VCC or GND pin: 128 mA; (4)input clamping current VI <0V: -50 mA; (5)storage temperature: -65 to +150℃.

Features

CBT3257APW features: (1)5Ω switch connection between two ports; (2)TTL-compatible input levels; (3)Minimal propagation delay through the switch; (4)ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V MM per JESD22-A115 and 1000 V CDM per JESD22-C101; (5)Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA.

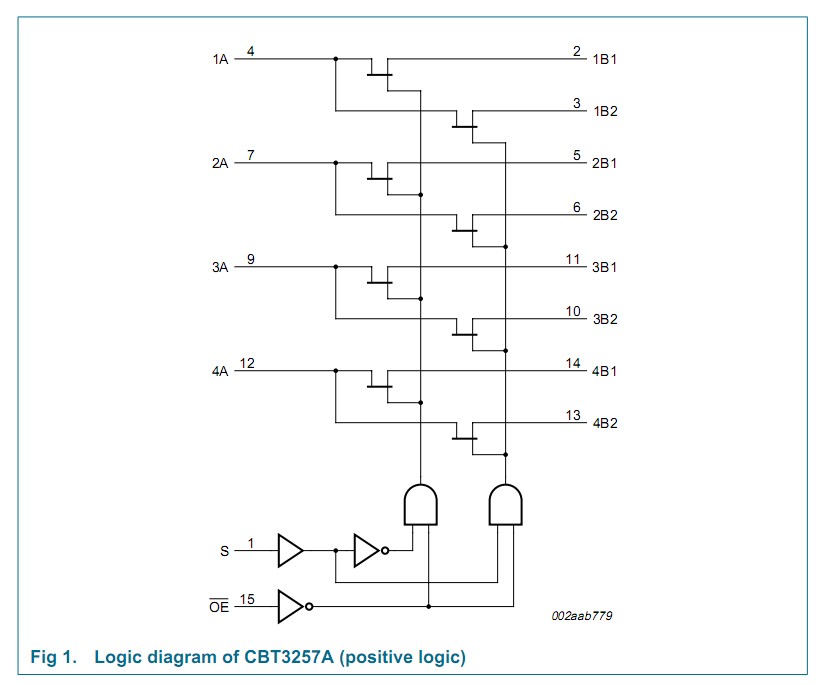

Diagrams

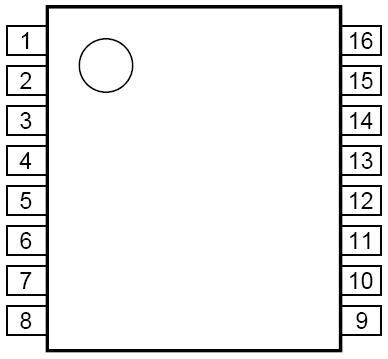

CBT3257APW pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CBT3257APW
CBT3257APW

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers QUAD 1OF2 MULTIPLXR/ DEMUX

Data Sheet

Negotiable
CBT3257APW,112
CBT3257APW,112

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers QUAD 1OF2 MULTIPLXR/

Data Sheet

0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
CBT3257APW,118
CBT3257APW,118

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers QUAD 1OF2 MULTIPLXR/

Data Sheet

0-1: $0.27
1-25: $0.23
25-100: $0.18
100-250: $0.15
CBT3257APW-T
CBT3257APW-T

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers QUAD 1OF2 MULTIPLXR/ DEMUX

Data Sheet

Negotiable
