Product Summary
The BT137S-800E is a Planar passivated sensitive gate four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac of the BT137S-800E is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits
Parametrics
BT137S-800E absolute maximum ratings: (1)IGM, Peak gate current: 2 A; (2)VGM, Peak gate voltage: 5 V; (3)PGM, Peak gate power: 5 W; (4)PG(AV), Average gate power over any 20 ms period: 0.5 W; (5)Tstg, Storage temperature -40 to 150℃; (6)Tj, Operating junction temperature: 125℃.
Features
BT137S-800E features: (1)IH, Holding current VD = 12 V; IGT = 0.1 A: 20 to 40 mA; (2)VT, On-state voltage IT = 10 A: -1.3 to 1.65 V; (3)VGT, Gate trigger voltage VD = 12 V; IT = 0.1 A: -0.7 to 1.5 V; (4)ID, Off-state leakage current VD = VDRM(max): -0.1 to 0.5 mA.

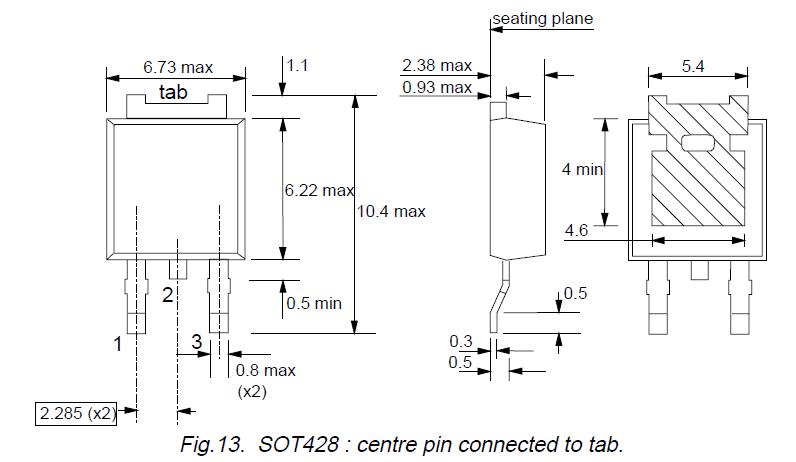

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BT137S-800E /T3 |
NXP Semiconductors |
Triacs TAPE13 TRIAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
BT137S-800E,118 |
NXP Semiconductors |
Triacs TAPE13 TRIAC |
Data Sheet |
|
|
||||||||||||
