BQ27510DRZT-G2

fuel gauge, -0.3 to 24V, 60μA, SON

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: BQ27510DRZT-G2

Brand:: Texas Instruments - TI | Pack: SON | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:BQ27510DRZT-G2
US $0.30 - 0.50
Quantity:

piece

Product Summary

The BQ27510DRZT-G2 is a system-side impedance track fuel gauge with direct battery connection. The BQ27510DRZT-G2 uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%) , run-time to empty (min.) , battery voltage (mV), and temperature. Applications of the BQ27510DRZT-G2 include: Smartphones, PDAs, Digital Still and Video Cameras, Handheld Terminals and MP3 or Multimedia Players.

Parametrics

BQ27510DRZT-G2 absolute maximum ratings: (1) Regulator input voltage VREGIN: -0.3 to 24V; (2) Supply voltage range Vcc: -0.3 to 2.75V; (3) Open-drain I/O pins (SDA, SCL, BAT_LOW/BAT_GD) VIOD: -0.3 to 6V; (4) BAT input pin VBAT: -0.3 to 6V; (5) Input voltage range to all other pins (TS, SRP, SRN, BI/TOUT) VI: -0.3 to Vcc +0.3V; (6) Functional temperature range TF: -40 to 100°C; (7) Storage temperature range Tstg: -65 to 150°C.

Features

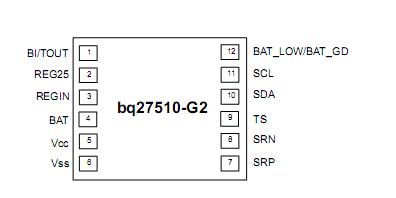

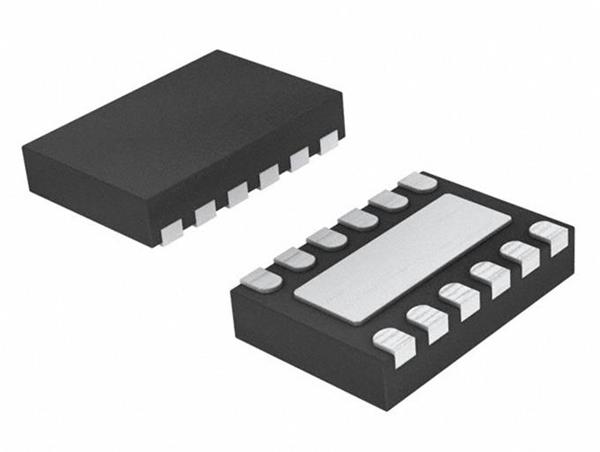

BQ27510DRZT-G2 features: (1) Battery Fuel Gauge for 1-Series Li-Ion Applications; (2) Resides on System Main Board; (3) Battery Fuel Gauging Based on Patented Impedance Track Technology; (4) I2C for Connection to System Microcontroller Port; (5) Small 12-pin 2,5mm×4mm SON Package.
