Product Summary

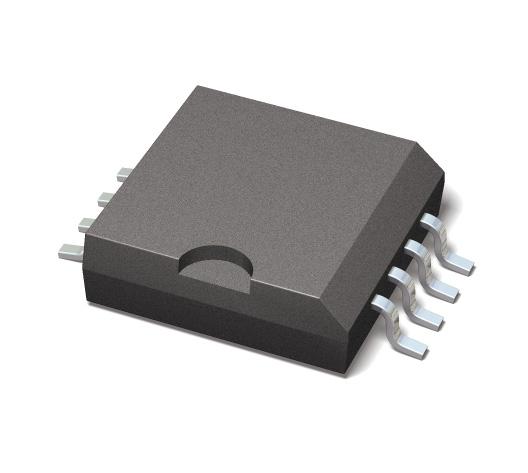

The AT-113TR is a voltage Variable Absorptive Attenuator. The AT-113TR is a GaAs MMIC voltage variable absorptive attenuator in a low-cost SOIC 8- lead surface mount plastic package. The AT-113TR is ideally suited for use where linear attenuation fine tuning and very low power consumption are required. Typical applications include radio, cellular, GPS equipment and automatic gain/level control circuits. The AT-113TR is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.

Parametrics

AT-113TR absolute maximum ratings: (1)Input Power: +21 dBm; (2)Supply Voltage VCC: -1 V < VCC < +8 V; (3)Control Voltage VC: -1 V < VC < VCC + 0.5 V; (4)Operating Temperature: -40℃ to +85℃; (5)Storage Temperature: -65℃ to +150℃.

Features

AT-113TR features: (1)Single Positive Voltage Control: 0 to +3 Volts; (2)40 dB Attenuation Range at 0.9 GHz; (3)±2 dB Linearity from BSL; (4)Low DC Power Consumption; (5)SOIC-8 Plastic Package; (6)Tape and Reel Packaging Available.

Diagrams

AT-113TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT-113TR
AT-113TR

M/A-COM Technology Solutions

Attenuators (ICs) 500-2000MHz IL 2.7dB Atten. Range 40dB

Data Sheet

0-1: $1.75
1-10: $1.46
10-100: $1.31
100-500: $1.16
