Product Summary

The AT-108TR is a GaAs, MESFET MMIC voltage variable absorptive attenuator in a low cost SOIC-8 lead surface mount plastic package. The AT-108TR is ideally suited for use where linear attenuation fine tuning and very low power consumption are required. Typical applications include radio, cellular, GPS equipment and automatic gain/level control circuits.

Parametrics

AT-108TR absolute maximum ratings: (1)Maximum Input Power: +21 dBm; (2)Supply Voltage VCC: -1V, +8V; (3)Control Voltage VC: -1V, VCC + 0.5V; (4)Operating Temperature: -40°C to +85°C; (5)Storage Temperature: -65°C to +150°C.

Features

AT-108TR features: (1)Single Positive Voltage Control 0 to +5 Volts; (2)40 dB Attenuation Range at 900 MHZ GHz; (3)± 2 dB Linearity from BSL; (4)Low DC Power Consumption; (5)Low-Cost SOIC-8 Plastic Package; (6)Tape and Reel Packaging Available.

Diagrams

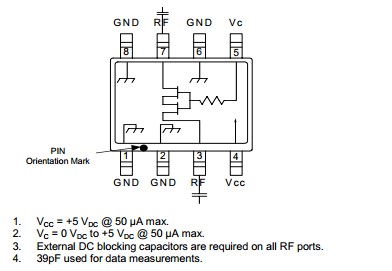

AT-108TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AT-108TR
AT-108TR
M/A-COM Technology Solutions
Active Attenuator .5-3.0GHz 40dB IL 3.5dB max.
Data Sheet
0-556: $3.70
556-1000: $2.87
1000-2000: $2.83
