Product Summary

The ATTINY26L-8SU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY26L-8SU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. The ATTINY26L-8SU also has a dedicated ADC Noise Reduction mode for reducing the noise in ADC conversion. In this sleep mode, only the ADC is functioning.

Parametrics

ATTINY26L-8SU absolute maximum ratings: (1)Maximum Clock Frequency: 55 MHz; (2)Operating Supply Voltage: 1.8 V to 3.3 V; (3)Maximum working temperature: + 85℃; (4)Minimum working temperature: -40℃.

Features

ATTINY26L-8SU features: (1)118 Powerful Instructions – Most Single Clock Cycle Execution; (2)32 x 8 General Purpose Working Registers; (3)Fully Static Operation; (4)Up to 16 MIPS Throughput at 16 MHz; (5)On-chip Analog Comparator; (6)External Interrupt; (7)Pin Change Interrupt on 11 Pins; (8)Programmable Watchdog Timer with Separate On-chip Oscillator; (9)Low Power Idle, Noise Reduction, and Power-down Modes; (10)Power-on Reset and Programmable Brown-out Detection; (11)External and Internal Interrupt Sources; (12)In-System Programmable via SPI Port; (13)Internal Calibrated RC Oscillator.

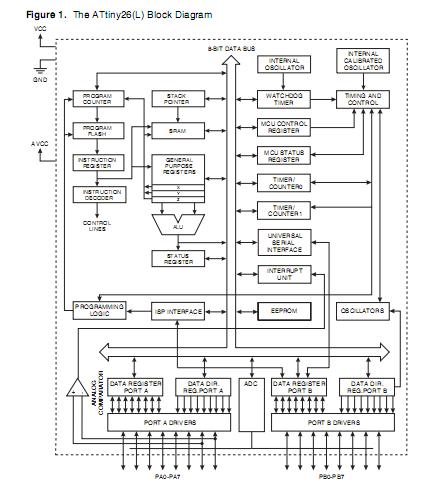

Diagrams

ATTINY26L-8SU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATtiny26L-8SU
ATtiny26L-8SU
Atmel
8-bit Microcontrollers (MCU) 2kB Flash 128B EE 128B SRAM
Data Sheet
0-1: $1.77
1-10: $1.48
10-25: $1.11
25-100: $1.00
ATTINY26L-8SUR
ATTINY26L-8SUR
Atmel
8-bit Microcontrollers (MCU) 2K FL 128B EE 128B SRAM ADC 8MHZ IND 3V
Data Sheet
0-830: $1.03
830-1000: $1.01
