Product Summary
The ATTINY2313-20 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY2313-20 achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATTINY2313-20 absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.
Features
ATTINY2313-20 features: (1)Utilizes the AVR RISC Architecture; (2)AVR High-performance and Low-power RISC Architecture; (3)Data and Non-volatile Program and Data Memories; (4)debugWIRE On-chip Debugging; (5)In-System Programmable via SPI Port; (6)External and Internal Interrupt Sources; (7)Low-power Idle, Power-down, and Standby Modes; (8)Enhanced Power-on Reset Circuit; (9)Programmable Brown-out Detection Circuit; (10)Internal Calibrated Oscillator.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATtiny2313-20MI |
Atmel |
8-bit Microcontrollers (MCU) AVR 2K FLSH 128B EE 128B SRAM 1 UART |
Data Sheet |
Negotiable |
|
||||||||||||
|

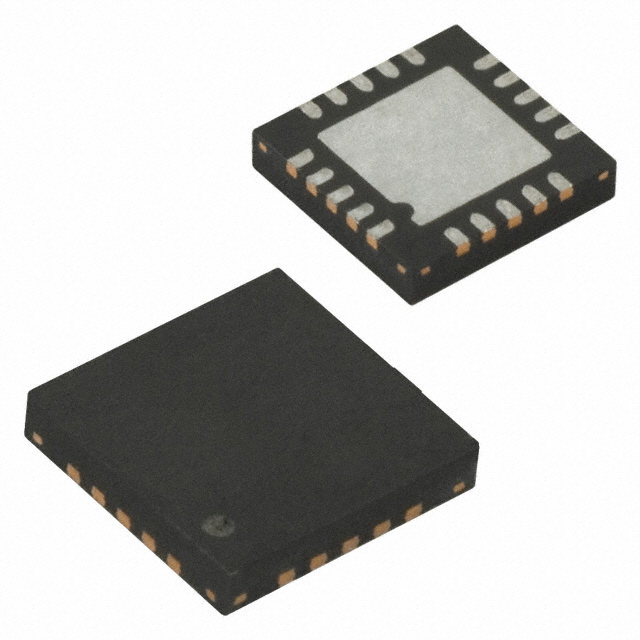

ATtiny2313-20MU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATtiny2313-20PU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATTINY2313-20MUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 2KB FLSH 128B EE 128B SRAM 1UART 20P |
Data Sheet |
|
|
||||||||||||
|
ATtiny2313-20PI |
Atmel |
8-bit Microcontrollers (MCU) AVR 2K FLSH 128B EE 128B SRAM 1 UART |
Data Sheet |
Negotiable |
|
||||||||||||
 |

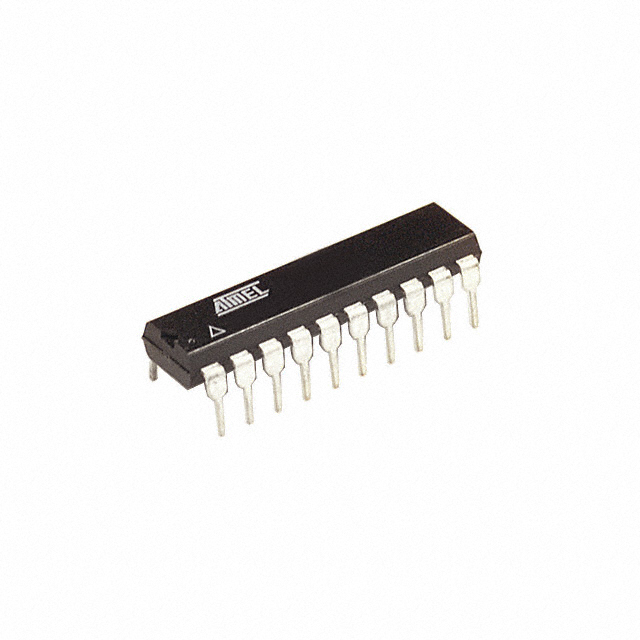

ATTINY2313-20PJ |
|
IC MCU AVR 2K FLASH 20DIP |
Data Sheet |
Negotiable |
|
||||||||||||
 |
ATtiny2313-20SU |
Atmel |
8-bit Microcontrollers (MCU) 2kB Flash 0.128kB EEPROM 18 I/O Pins |
Data Sheet |
|
|
||||||||||||
 |
ATTINY2313-20SUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 2KB FLSH 128B EE 128B SRAM 1UART 20P |
Data Sheet |
|
|
||||||||||||
