Product Summary
The ATTINY13V-10SSU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13V-10SSU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATTINY13V-10SSU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -1.0V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -1.0V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.
Features
ATTINY13V-10SSU features: (1)High Performance, Low Power AVR 8-Bit Microcontroller; (2)Advanced RISC Architecture: 120 Powerful Instructions-Most Single Clock Cycle Execution, 32 x 8 General Purpose Working Registers, Fully Static Operation; (3)I/O and Packages: 8-pin PDIP/SOIC: Six Programmable I/O Lines.

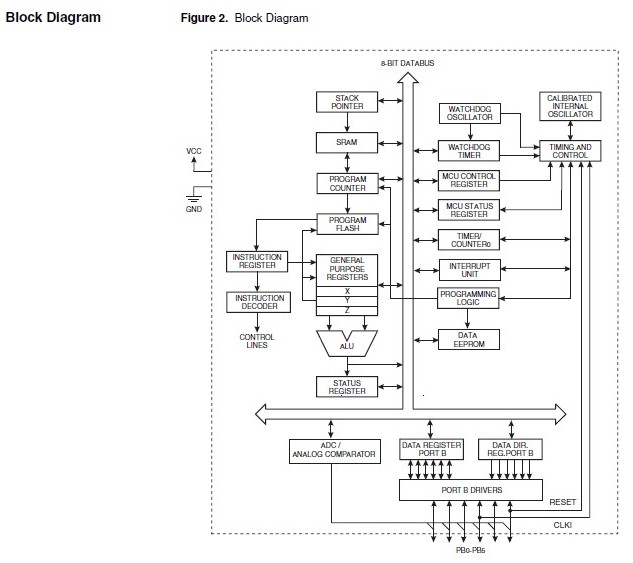

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATtiny13V-10SSU |
Atmel |
8-bit Microcontrollers (MCU) 1kB Flash 0.064kB EEPROM 6 I/O Pins |
Data Sheet |
|
|
||||||||
 |
ATTINY13V-10SSUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 1KB FLSH 64B EE 64B SRAM-10MHz |
Data Sheet |
|
|
||||||||
 |
ATTINY13V-10SSU-SL383 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
