Product Summary

The ATTINY13A-PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATTINY13A-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATTINY13A-PU absolute maximum ratings: (1)Storage Temperature : -65°C to +150°C; (2)Voltage on any Pin except RESET with respect to Ground : -0.5V to VCC+0.5V; (3)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (4)Maximum Operating Voltage : 6.0V; (5)DC Current per I/O Pin : 40.0 mA; (6)DC Current VCC and GND Pins : 200.0 mA.

Features

ATTINY13A-PU features: (1)Industrial Temperature Range; (2)Low Power Consumption: Active Mode: 190 uA at 1.8 V and 1 MHz. Idle Mode: 24 uA at 1.8 V and 1 MHz; (3)I/O and Packages: 8-pin PDIP/SOIC: Six Programmable I/O Lines, 20-pad MLF: Six Programmable I/O Lines; (4)Operating Voltage: 1.8 - 5.5V; (5)High Performance, Low Power AVR 8 Bit Microcontroller.

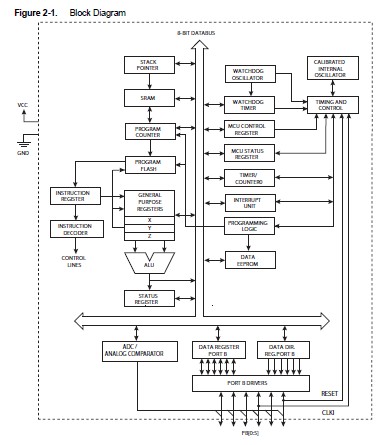

Diagrams

ATTINY13A-PU pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATTINY13A-PU
ATTINY13A-PU

Atmel

8-bit Microcontrollers (MCU) 1KB In-system Flash 20MHz 1.8V-5.5V

Data Sheet

0-1: $0.56
1-10: $0.55
10-25: $0.36
25-100: $0.32
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATtiny10
ATtiny10

Other


Data Sheet

Negotiable
ATTINY10-MAH
ATTINY10-MAH

Atmel

8-bit Microcontrollers (MCU) AVR 1KB FL 32B SRAM ATTINY10 12MHz

Data Sheet

Negotiable
ATTINY10-MAHR
ATTINY10-MAHR

Atmel

8-bit Microcontrollers (MCU) AVR 1KB FLSH 32B SRAM 12MHz NiPdAu

Data Sheet

0-1: $0.46
1-10: $0.38
10-25: $0.29
25-100: $0.26
ATTINY10-TS8R
ATTINY10-TS8R

Atmel

8-bit Microcontrollers (MCU) AVR1KB FLSH 32B SRAM 12MHz NiPdAu + 125C

Data Sheet

0-3800: $0.25
3800-4500: $0.25
ATTINY10-TSHR
ATTINY10-TSHR

Atmel

8-bit Microcontrollers (MCU) 12MHz, Indust. Temp

Data Sheet

0-1: $0.41
1-10: $0.35
10-25: $0.26
25-100: $0.23
ATtiny11
ATtiny11

Other


Data Sheet

Negotiable
