ATMEGA88PA-MU

Product Summary

The ATMEGA88PA-MU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA88PA-MU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA88PA-MU absolute maximum ratings: (1)Operating Temperature: -55℃ to +125℃ ; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0mA; (7)DC Current VCC and GND Pins: 200.0mA.

Features

ATMEGA88PA-MU features: (1)High Performance, Low Power AVR8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)131 Powerful Instructions Most Single Clock Cycle Execution; (4)32 x 8 General Purpose Working Registers; (5)Fully Static Operation; (6)Up to 20 MIPS Throughput at 20 MHz; (7)On-chip 2-cycle Multiplier; (8)High Endurance Non-volatile Memory Segments; (9)8K Bytes of In-System Self-Programmable Flash progam memory (ATmega88PA); (10)512 Bytes EEPROM (ATmega88PA); (11)1K Bytes Internal SRAM (ATmega88PA); (12)Write/Erase Cycles: 10,000 Flash/100,000 EEPROM; (13)Data retention: 20 years at 85℃/100 years at 25℃; (14)Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation; (15)Programming Lock for Software Security; (16)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (17)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (18)Real Time Counter with Separate Oscillator; (19)Six PWM Channels; (20)8-channel 10-bit ADC in TQFP and QFN/MLF package Temperature Measurement; (21)6-channel 10-bit ADC in PDIP Package Temperature Measurement; (22)Programmable Serial USART; (23)Master/Slave SPI Serial Interface; (24)Byte-oriented 2-wire Serial Interface (Philips I2C compatible); (25)Programmable Watchdog Timer with Separate On-chip Oscillator; (26)On-chip Analog Comparator; (27)Interrupt and Wake-up on Pin Change; (28)Power-on Reset and Programmable Brown-out Detection; (29)Internal Calibrated Oscillator; (30)External and Internal Interrupt Sources; (31)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby; (32)I/O and Packages: 23 Programmable I/O Lines; 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF; (33)Operating Voltage: 1.8 - 5.5V for ATmega88PA; (34)Temperature Range: -40℃ to 85℃; (35)Speed Grade: 0 - 20 MHz @ 1.8 - 5.5V; (36)Low Power Consumption at 1 MHz, 1.8V, 25℃:; (37)Active Mode: 0.2 mA; (38)Power-down Mode: 0.1μA; (39)Power-save Mode: 0.75μA (Including 32 kHz RTC).

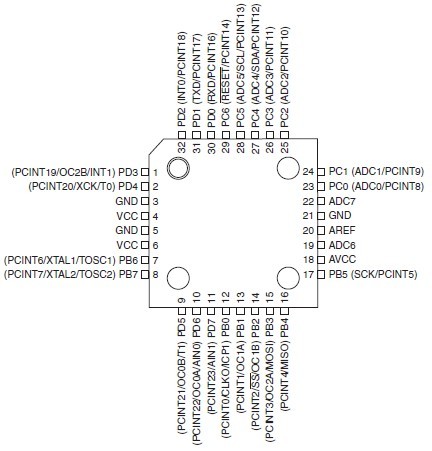

Diagrams
