Product Summary
The ATMEGA48PA-MU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA48PA-MU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
Parametrics
ATMEGA48PA-MU maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.
Features
ATMEGA48PA-MU features: (1)High Performance, Low Power AVR?8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory Segments; (4)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (5)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (6)Real Time Counter with Separate Oscillator; (7)Six PWM Channels; (8)Power-on Reset and Programmable Brown-out Detection; (9)Internal Calibrated Oscillator; (10)External and Internal Interrupt Sources.

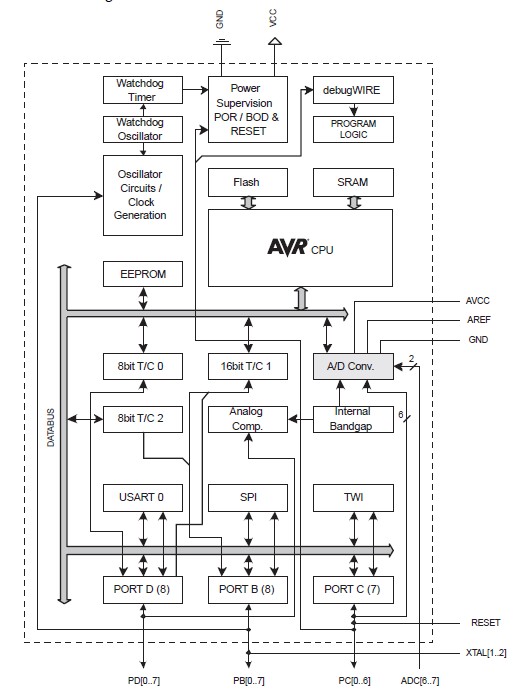

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATMEGA48PA-MU |
Atmel |
8-bit Microcontrollers (MCU) AVR 4KB FLASH 20 MHZ,IND TEMP |
Data Sheet |
|
|
||||||||
|
ATMEGA48PA-MUR |
Atmel |
8-bit Microcontrollers (MCU) AVR 4KB FLSH 256B EE 512B SRAM-20MHz IND |
Data Sheet |
|
|
||||||||
