ATMEGA48PA-AUR

ATMEGA48PA-AUR, microcontroller, -0.5V, 40.0 mA, TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1000 ~ 10000 :	0.40 / Piece
10000 ~ 100000 :	0.30 / Piece

PartNumber:: ATMEGA48PA-AUR

Brand:: ATMEL Corporation - ATMEL | Pack: TQFP | D/C: 13+

Availability:: Supply Ability: 100000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-04

From Other Seller

Part Number:ATMEGA48PA-AUR
US $0.30 - 0.50
Quantity:

piece

Product Summary

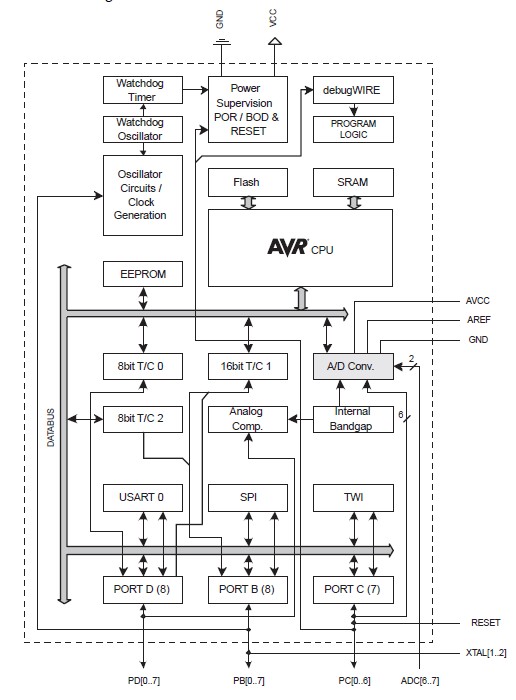

The ATMEGA48PA-AUR is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA48PA-AUR achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA48PA-AUR maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

ATMEGA48PA-AUR features: (1)High Performance, Low Power AVR?8-Bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory Segments; (4)Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode; (5)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (6)Real Time Counter with Separate Oscillator; (7)Six PWM Channels; (8)Power-on Reset and Programmable Brown-out Detection; (9)Internal Calibrated Oscillator; (10)External and Internal Interrupt Sources.
